2002 Suzuki Volusia VL800 Rear Drum Brake Mechanical Rod Linkage Spring OEM

2002 Suzuki Volusia VL800 Rear Drum Brake Mechanical Rod Linkage Spring OEM

### IMPORTANT: BEFORE YOU BUY

* **Verify Part Number:** Please look closely at your motorcycle's official chassis microfiche layouts under the **REAR WHEEL** section (FIG.32). This assembly features the genuine Suzuki factory mechanical braking components matching catalog name **ROD ASSY, REAR BRAKE** under original part number **43300-41F10** (this factory bundle includes rod core **43310-41F10**, pin **43351-13010**, spring **09440-09004**, and related hardware washers). All part numbers are verified strictly through an official online dealer catalog database.

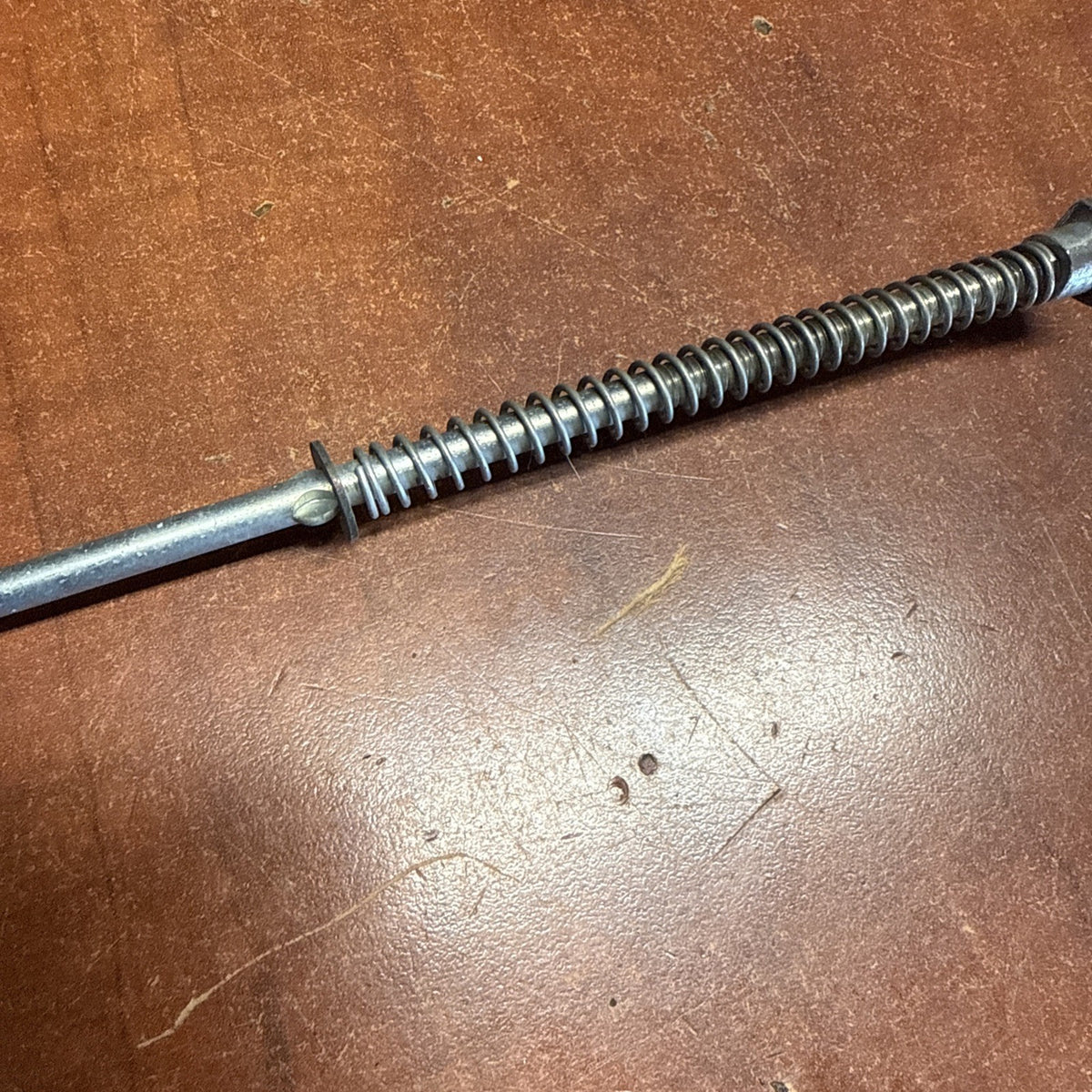

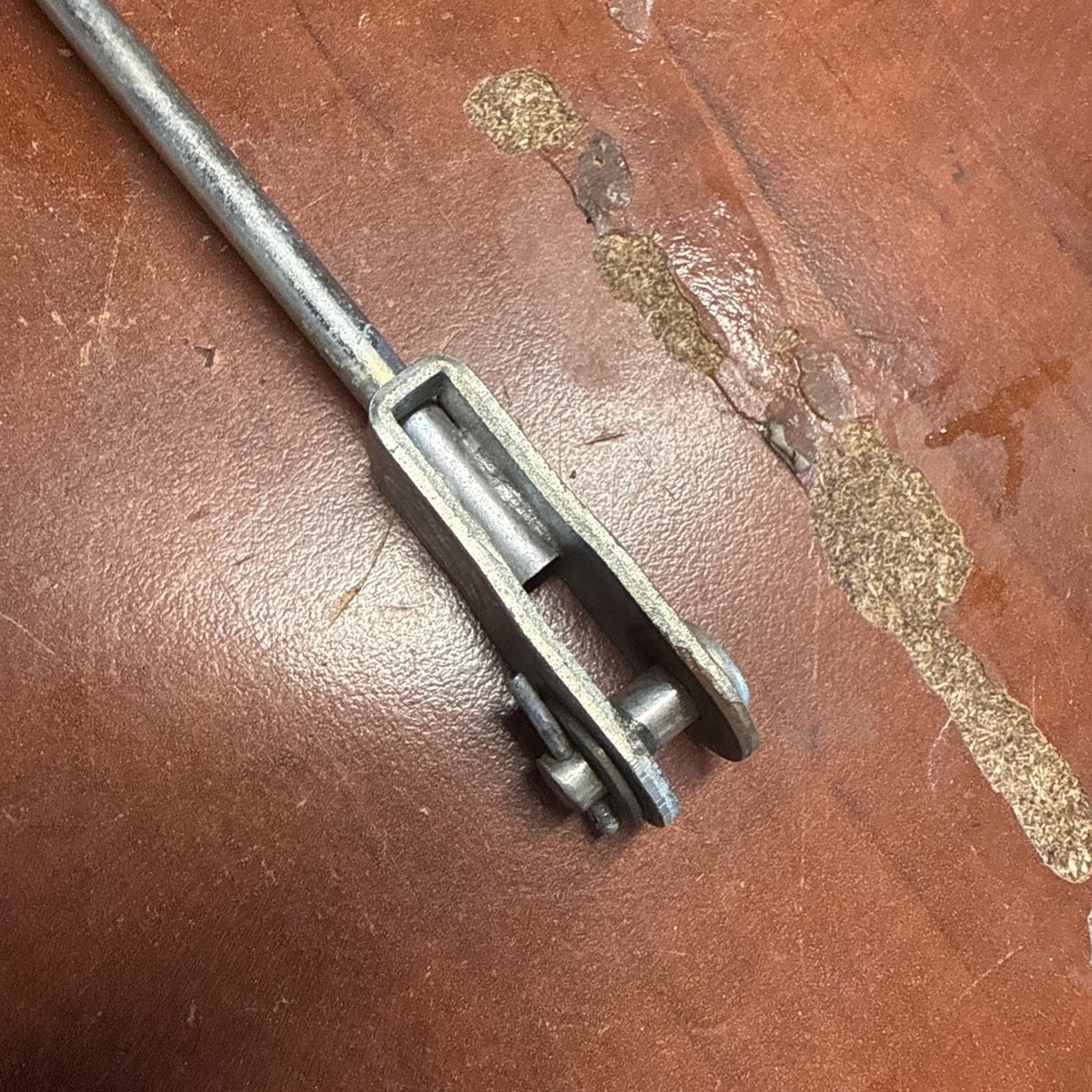

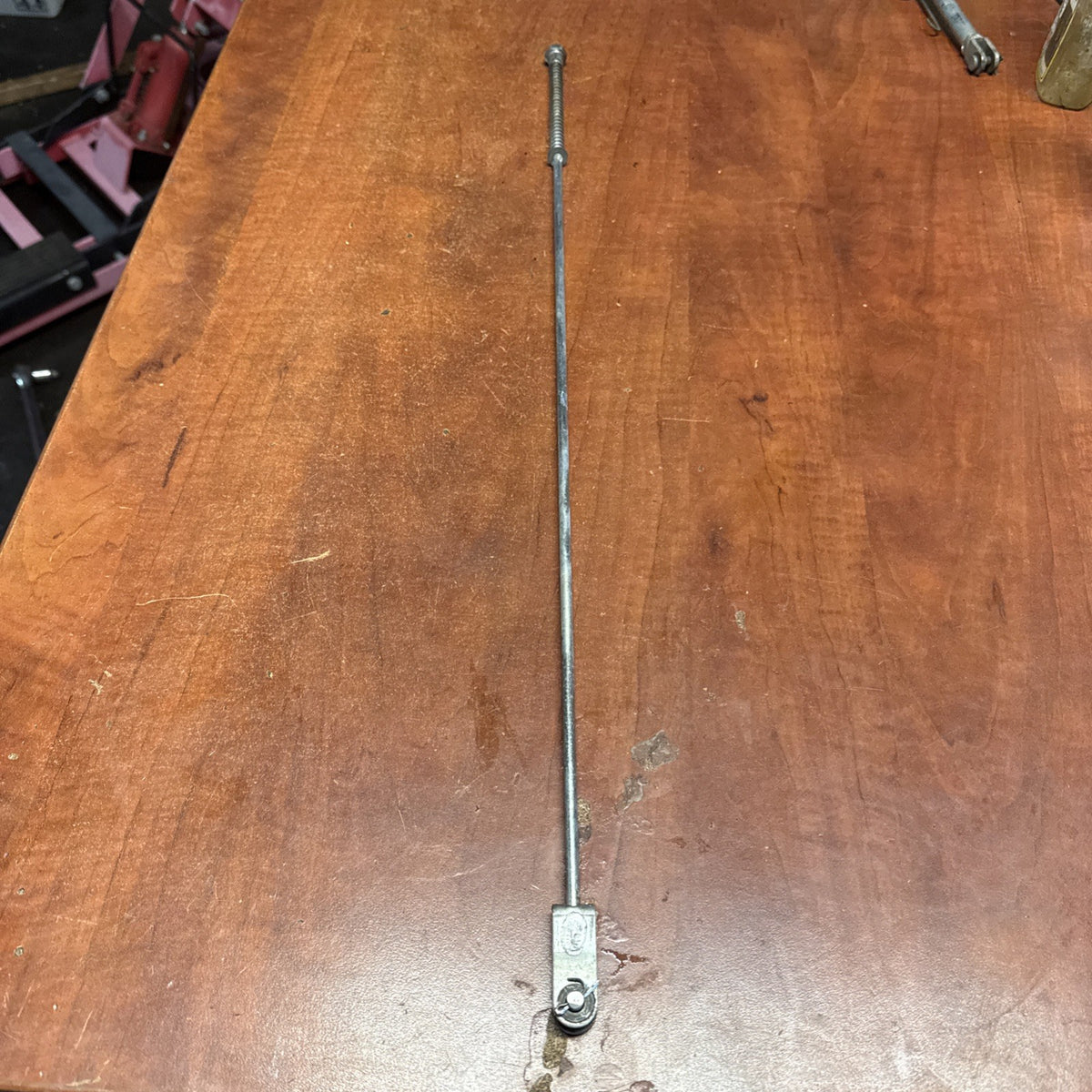

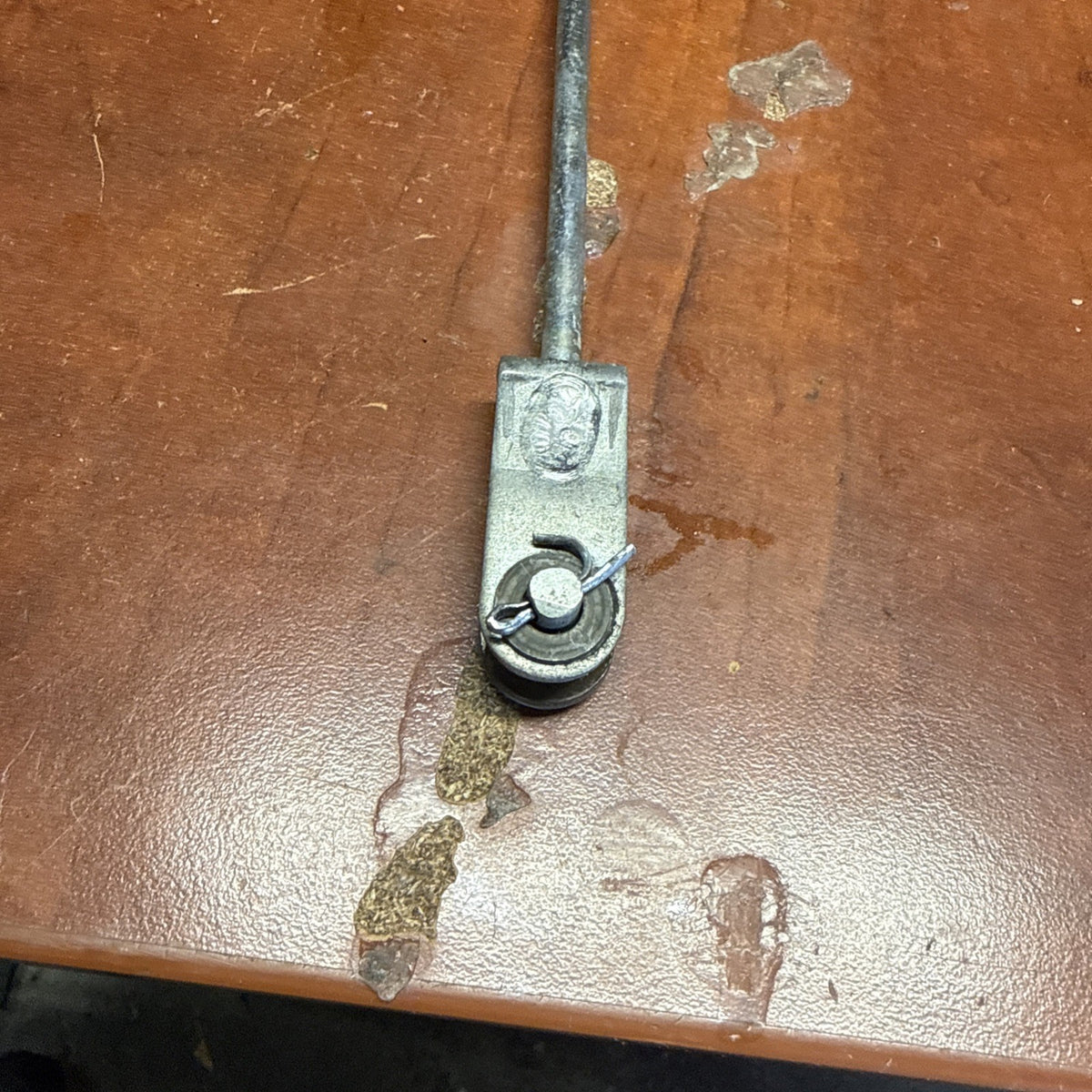

* **Hardware Included:** This listing features the complete mechanical rear brake linkage rod assembly exactly as shown. It comes fully loaded with the long solid steel linkage rod, the rear terminal compression return spring, the cylindrical barrel joint alignment pin, the structural spacing washer, and the matching hex adjustment nut.

* **Compatibility:** Taken directly from a 2002 model year carburetor cruiser. Links the lower rider foot brake pedal pivot mechanism directly to the rear drum brake panel cam lever arm.

### Description

This is a genuine **OEM Suzuki Rear Drum Brake Mechanical Rod Linkage Assembly**. Engineered from high-tensile solid steel rod stock to guarantee zero-flex braking performance and instantaneous response, this authentic factory setup transmits foot lever pressure to the rear drum shoes. Since this complete assembly bundle has been discontinued by Suzuki, sourcing an intact used factory rod loaded with its original matching return tension spring, critical swivel cross-pin barrel, and clean metric adjustment thread hardware saves you from the impossibility of trying to source individual components.

* **Manufacturer:** Suzuki Motor Corporation (Made in Japan)

* **OEM Catalog Component Name:** ROD ASSY, REAR BRAKE

* **OEM Part Number:** 43300-41F10 / 43310-41F10

* **Included Components:** Long Steel Linkage Rod, 1x Compression Return Spring, 1x Swivel Barrel Alignment Pin, 1x Metal Washer, and 1x Threaded Adjuster Nut

* **Placement on Vehicle:** Lower Right Side Frame Core (Pedal Junction back to Rear Wheel Hub)

* **Donor Vehicle:** 2002 Suzuki VL800 Intruder Volusia (Carburetor Model) with 12,855 original miles.

### Vehicle Fitment

* **2002 Suzuki Volusia 800** (VL800 / VL800Z classic carburetor cruiser)

### Condition

* **Overall Status:** Clean, excellent fully functional used condition, structurally sound and removed from a low-mileage road motorcycle.

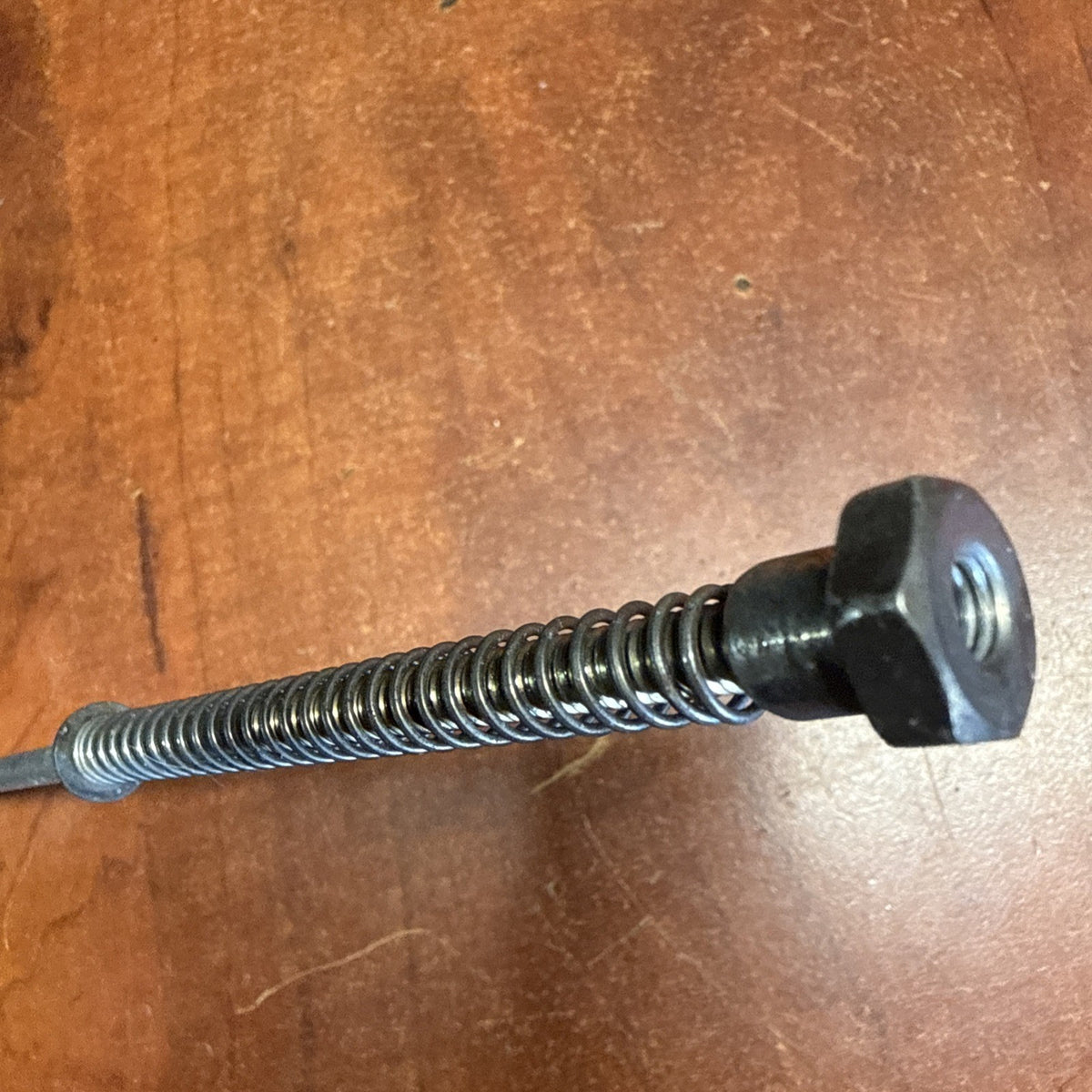

* **Straightness & Threads:** The main solid steel shaft is arrow-straight and completely free of operational bows, collision bends, or structural twists. The fine metric threads on the tension adjustment tip are exceptionally clean, sharp, and entirely unstripped, allowing the adjustment nut to spin freely across the full length.

* **Cosmetic Finish:** The factory zinc-plated protective finish is intact and displays only typical light cosmetic tarnish and faint environmental surface oxidation film from normal road exposure as pictured. There is no severe scaling rust, deep metal pitting, or compromise to the rod's diameter. The heavy coil return spring retains its rigid tension properties perfectly.
