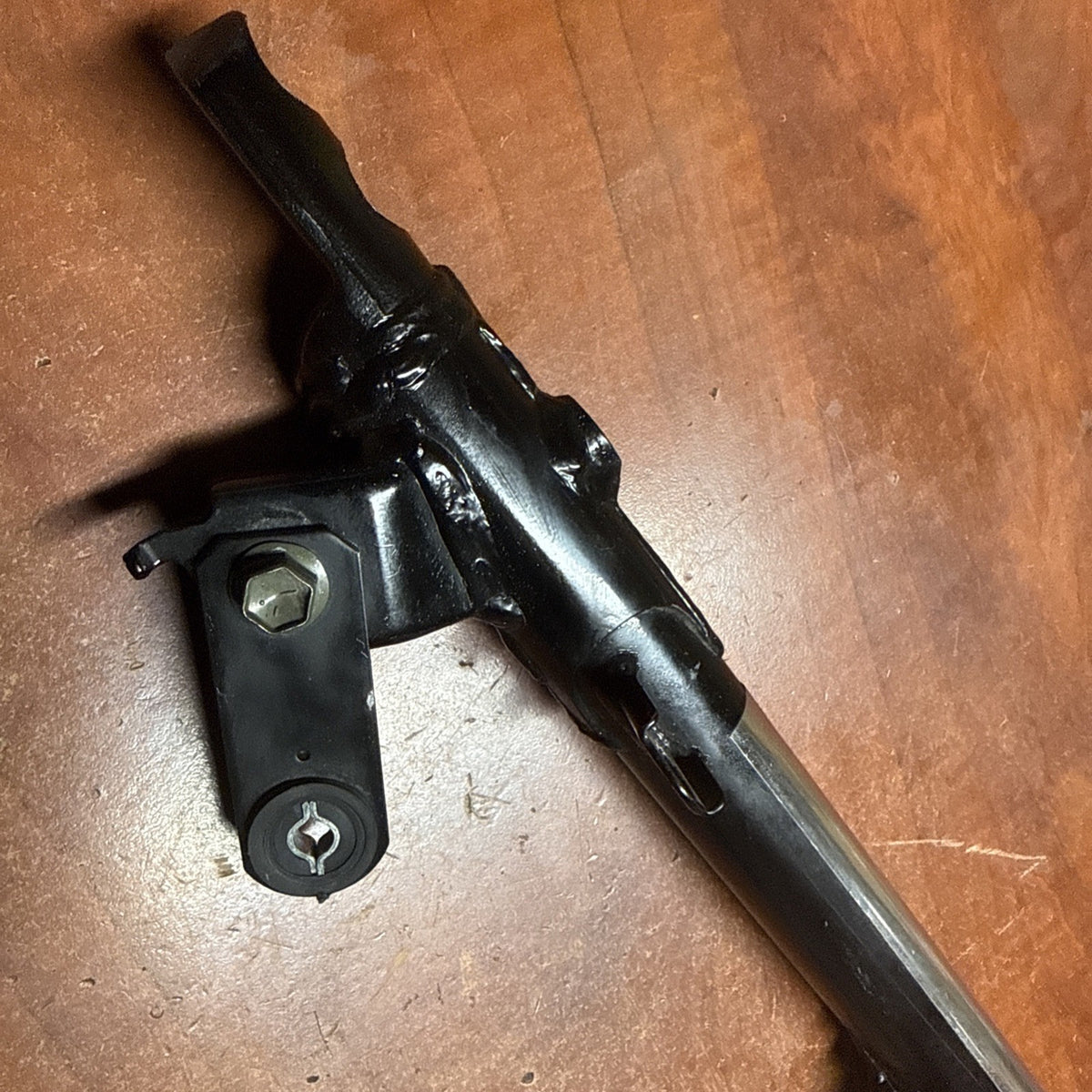

2002 Suzuki Volusia VL800 Right Lower Frame Subframe Rail Engine Crossmember

2002 Suzuki Volusia VL800 Right Lower Frame Subframe Rail Engine Crossmember Bolt

### IMPORTANT: BEFORE YOU BUY

* **OEM Catalog Reference Details:** Please look closely at your motorcycle's official chassis microfiche blueprints under the **FRAME** section (FIG.55 / FIG.57). Suzuki manufactured this removable structural frame tube strictly as an integrated component of the main core assembly **FRAME (BLACK)** under base part number **41100-41F00-019** (supersedes to newer layouts **41100-41F22-019**). Because the manufacturer does not retail this specific rail independently from the $2100+ complete frame chassis, this verified used factory listing provides a rare and essential replacement option.

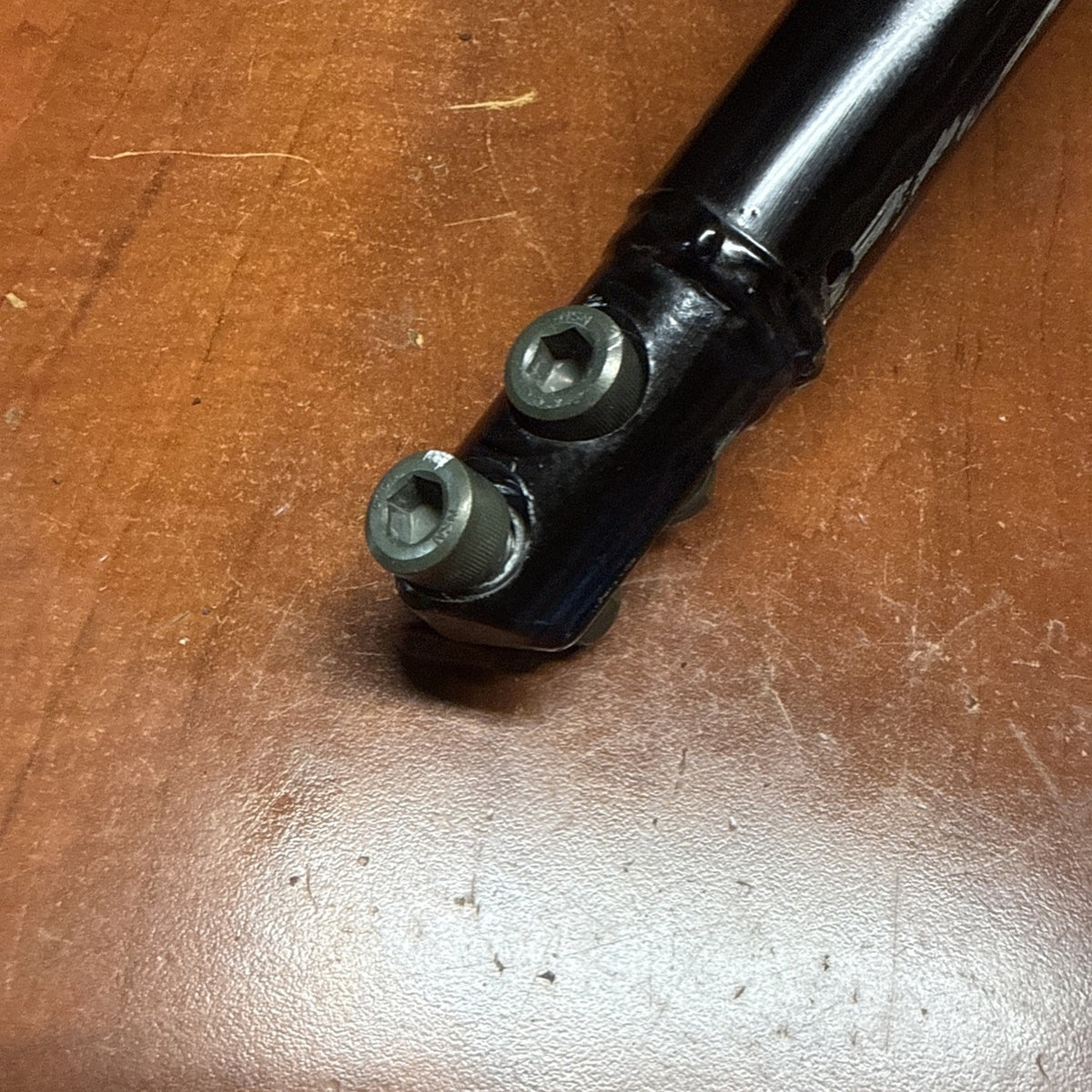

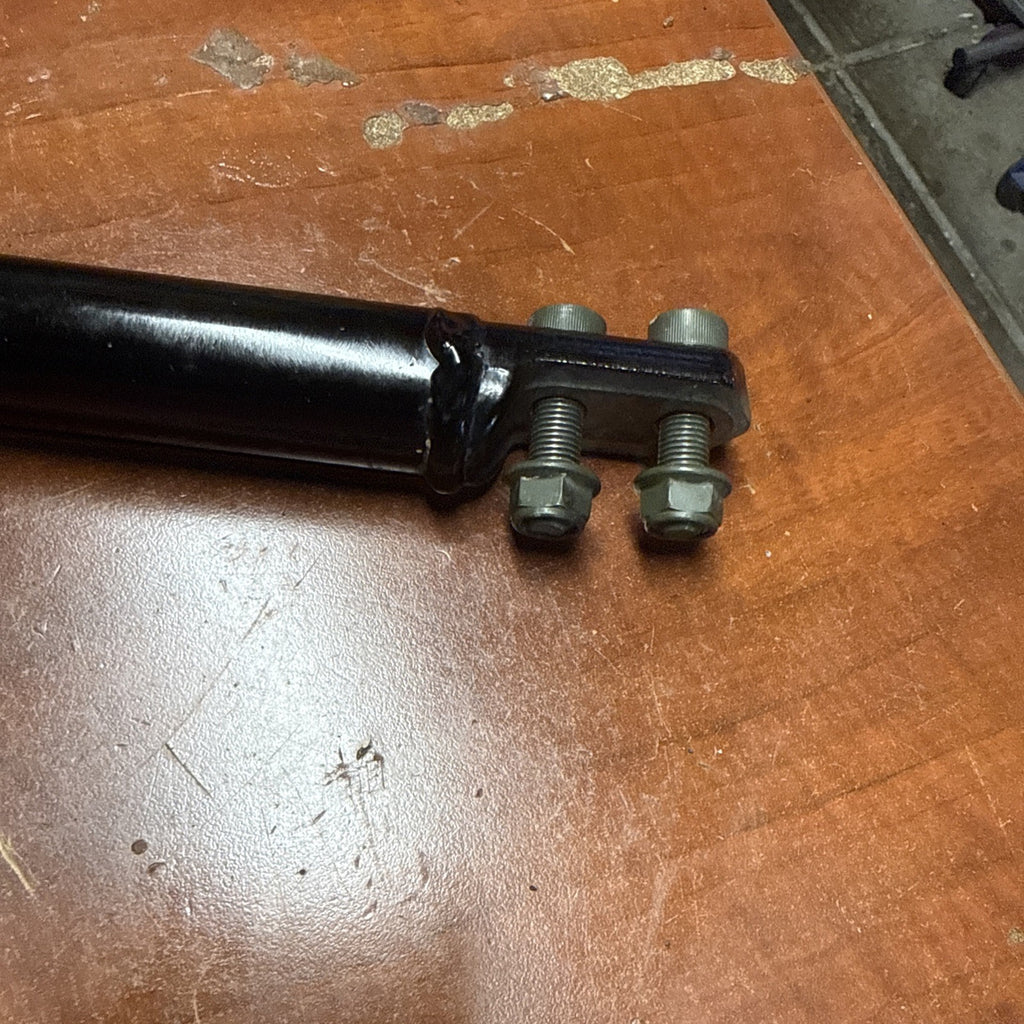

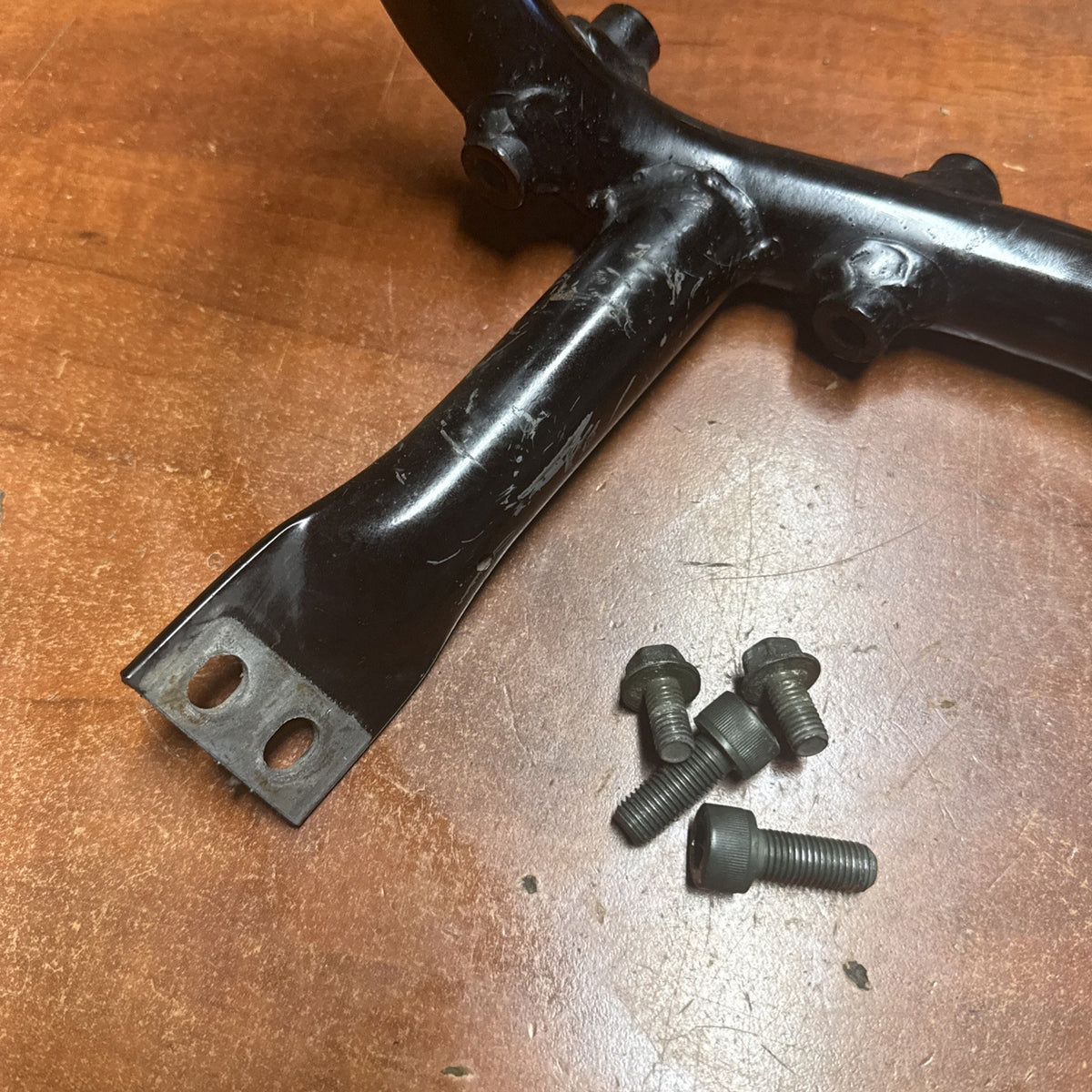

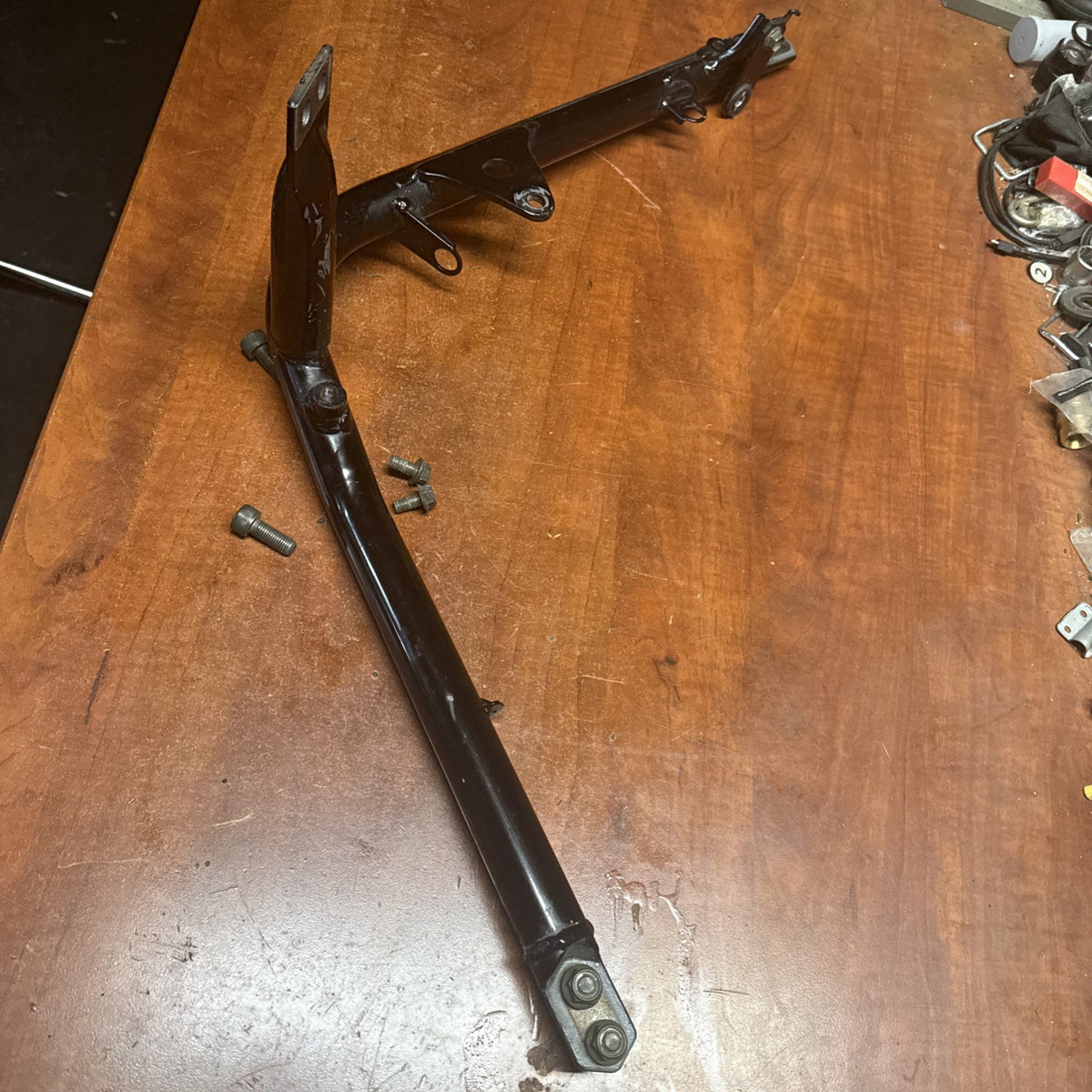

* **Hardware Included:** This listing features the complete removable right-hand lower chassis cradle subframe rail exactly as shown. It arrives fully loaded as a complete hardware bundle with all four original flanged metric high-tensile connection mounting bolts and their matching factory locking hex nuts (**01550-0816A** / **07130-1025B** / **07130-1035B** / **08319-3110A**).

* **Compatibility:** Taken directly from a 2002 model year carburetor cruiser. This removable frame section allows mechanical clearance to slide and drop out the V-Twin engine block from the right side of the main chassis skeleton matrix.

### Description

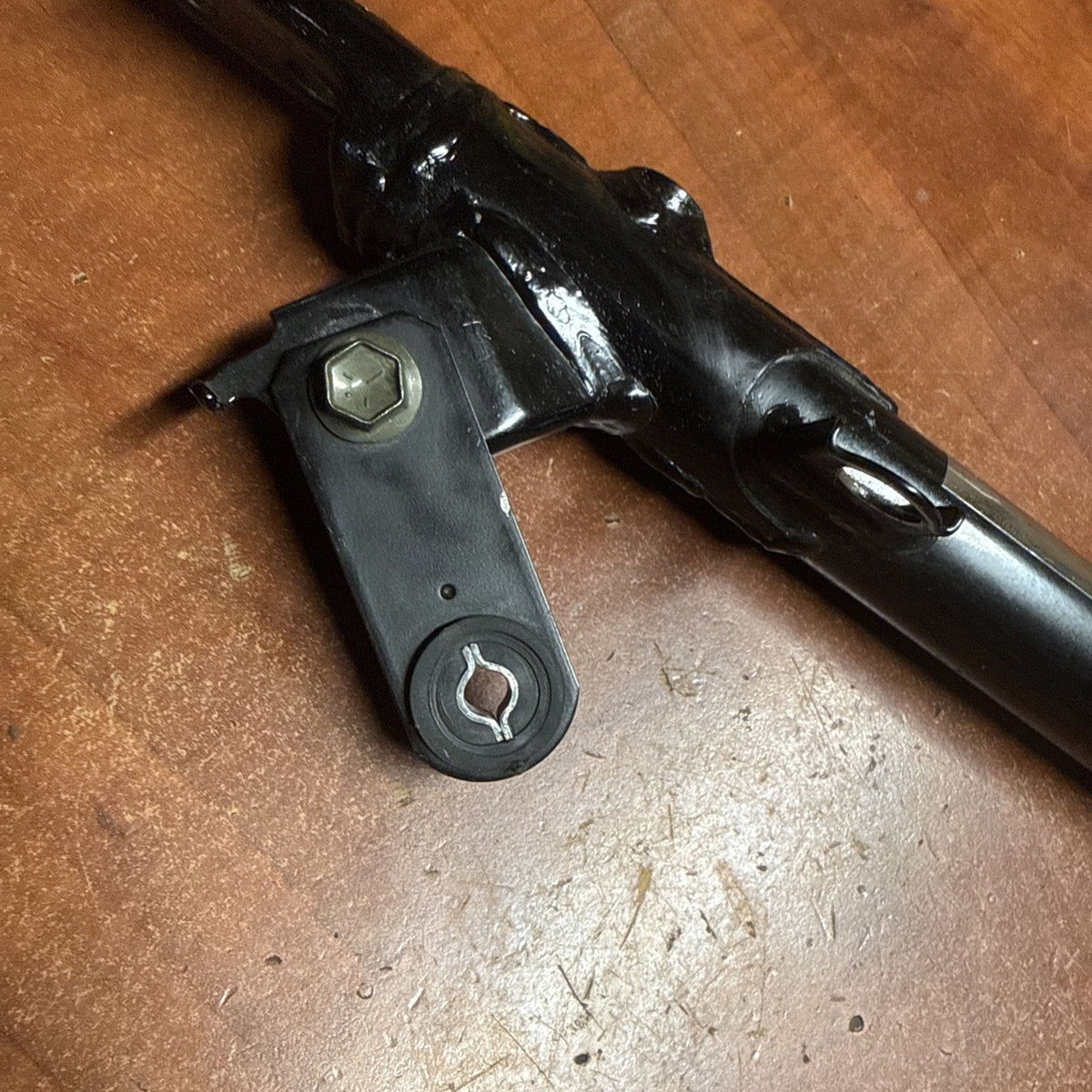

This is a genuine **OEM Suzuki Right Lower Removable Frame Rail Subframe & Bolt Set**. Heavy-welded from thick-wall structural steel tubular rails at the factory in Japan to serve as a load-bearing engine crossmember brace layout, this authentic original chassis section links the front downtube directly to the footpeg mounts. Sourcing a perfectly straight used factory lower rail loaded with all four correct specialized flanged metric shoulder mounting bolts and matching lock nuts saves you from the frustration or impossibility of trying to track down discontinued mounting fasteners from a dealer parts microfiche database.

* **Manufacturer:** Suzuki Motor Corporation (Made in Japan)

* **OEM Catalog Main Component Reference:** 41100-41F00-019 (Component of Main Frame Assembly)

* **OEM Installation Bolt Parts:** 01550-0816A / 07130-1025B / 07130-1035B / 08319-3110A

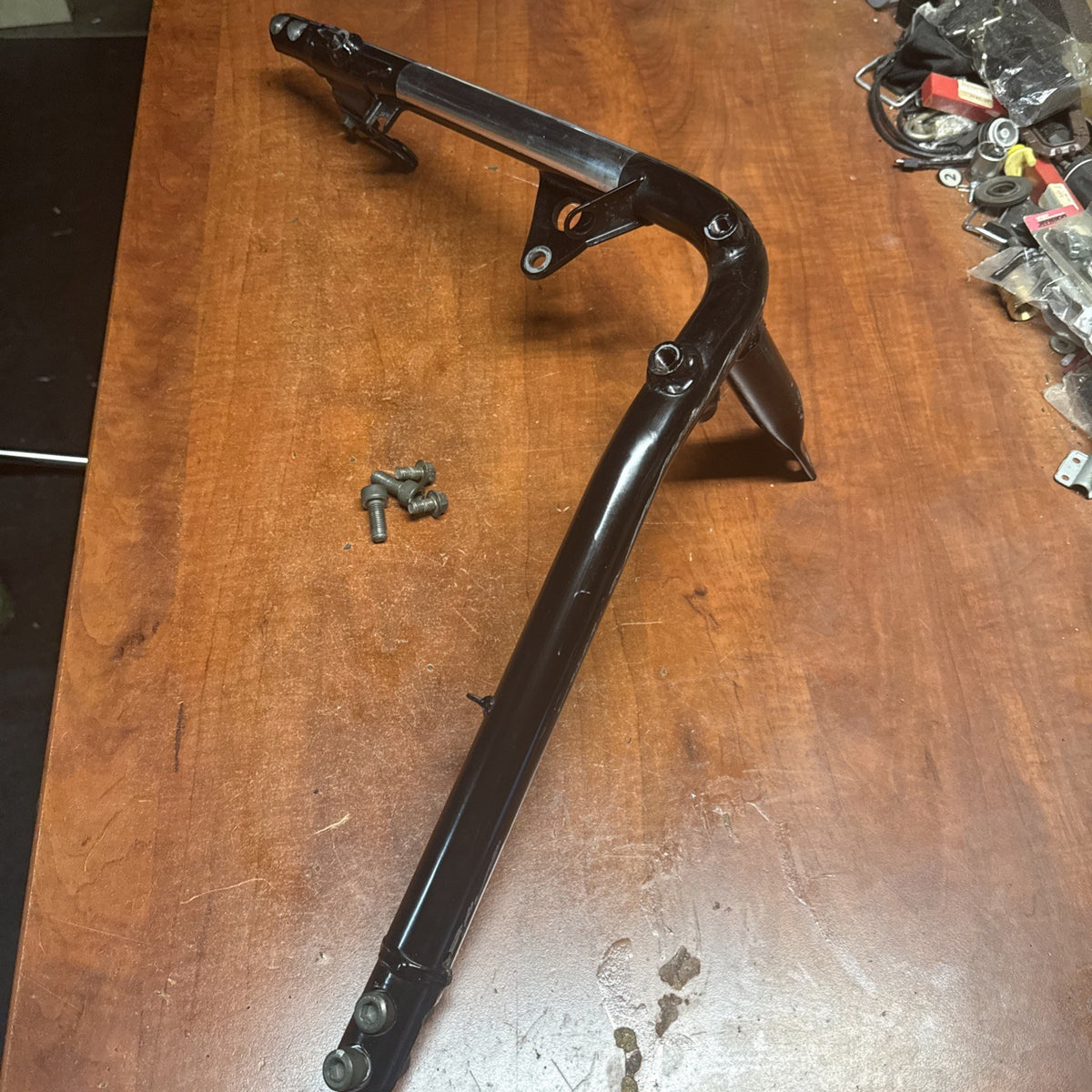

* **Included Components:** 1x Removable Right Lower Steel Frame Tube (Gloss Black), 4x Original Metric Flanged Mounting Bolts, and 2x Flanged Security Hex Nuts

* **Placement on Vehicle:** Right Hand Lower Engine Cradle / Removable Side Chassis Member

* **Donor Vehicle:** 2002 Suzuki VL800 Intruder Volusia (Carburetor Model) with 12,855 original miles.

### Vehicle Fitment

* **2002 Suzuki Volusia 800** (VL800 / VL800Z classic carburetor cruiser)

### Condition

* **Overall Status:** Clean, sturdy excellent structural functional used condition, fully sound and removed from a low-mileage operational road motorcycle.

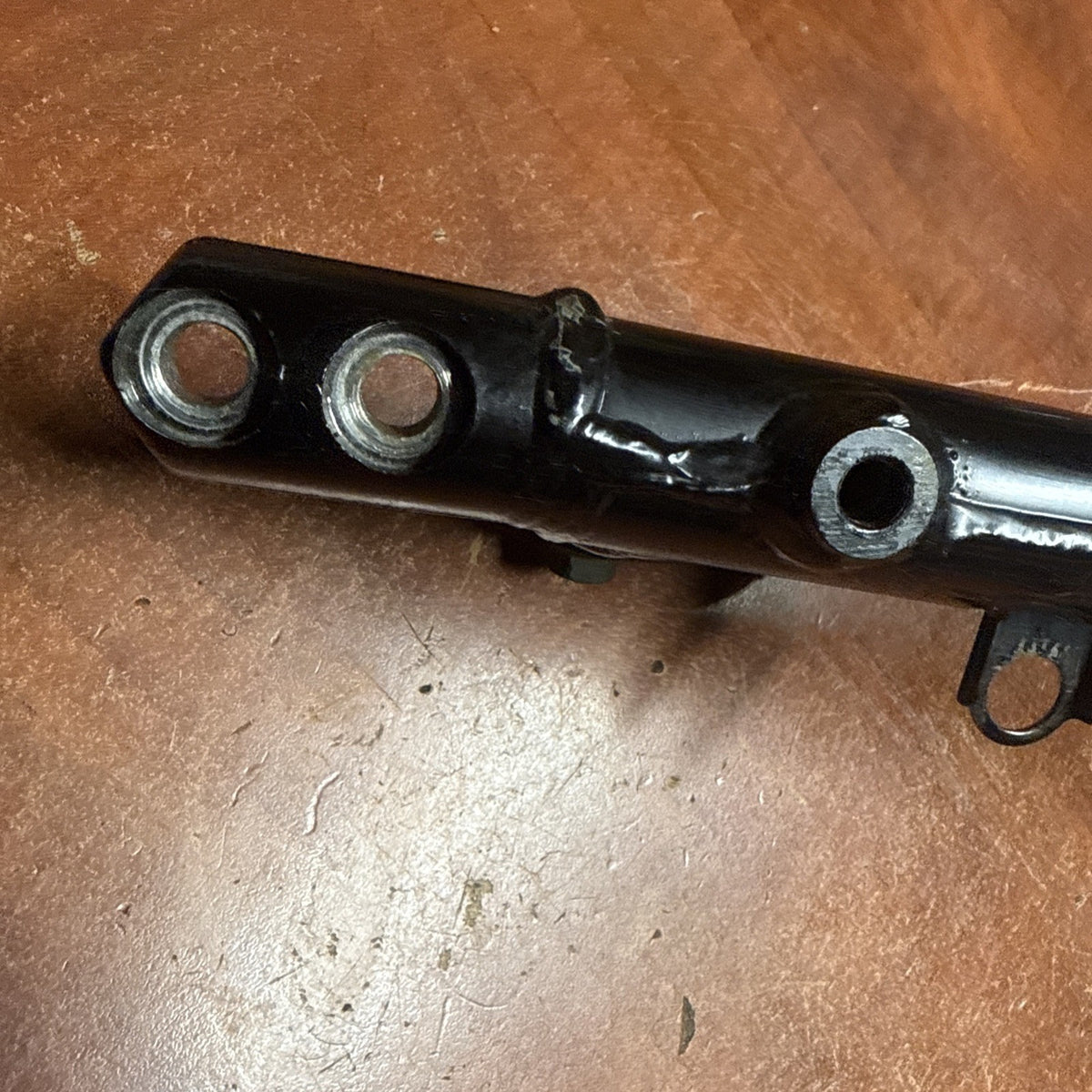

* **Tube & Alignment:** The heavy-duty structural steel frame rail is completely solid, arrow-straight, and entirely free of grounding flat spots, underside impact crush dents, collision twists, stress fractures, or re-welded patches. All bracket holes and welded eyelet loops maintain factory diameters with no distortion.

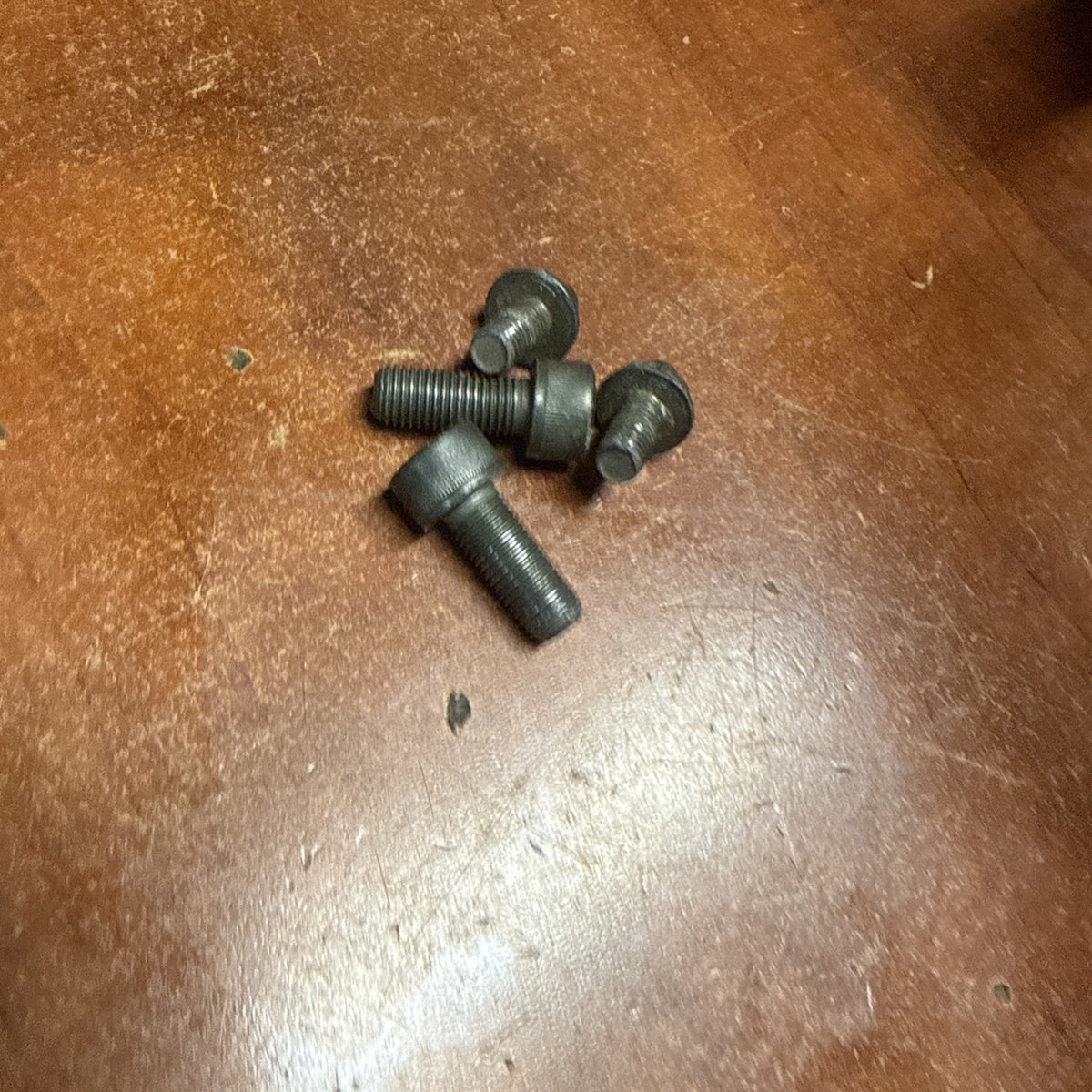

* **Mounting Hardware:** All four heavy-duty metric bolts feature exceptionally clean, deep, unstripped thread channels and sharp hex flanged heads that are not rounded off. The locking hex nuts turn smoothly.

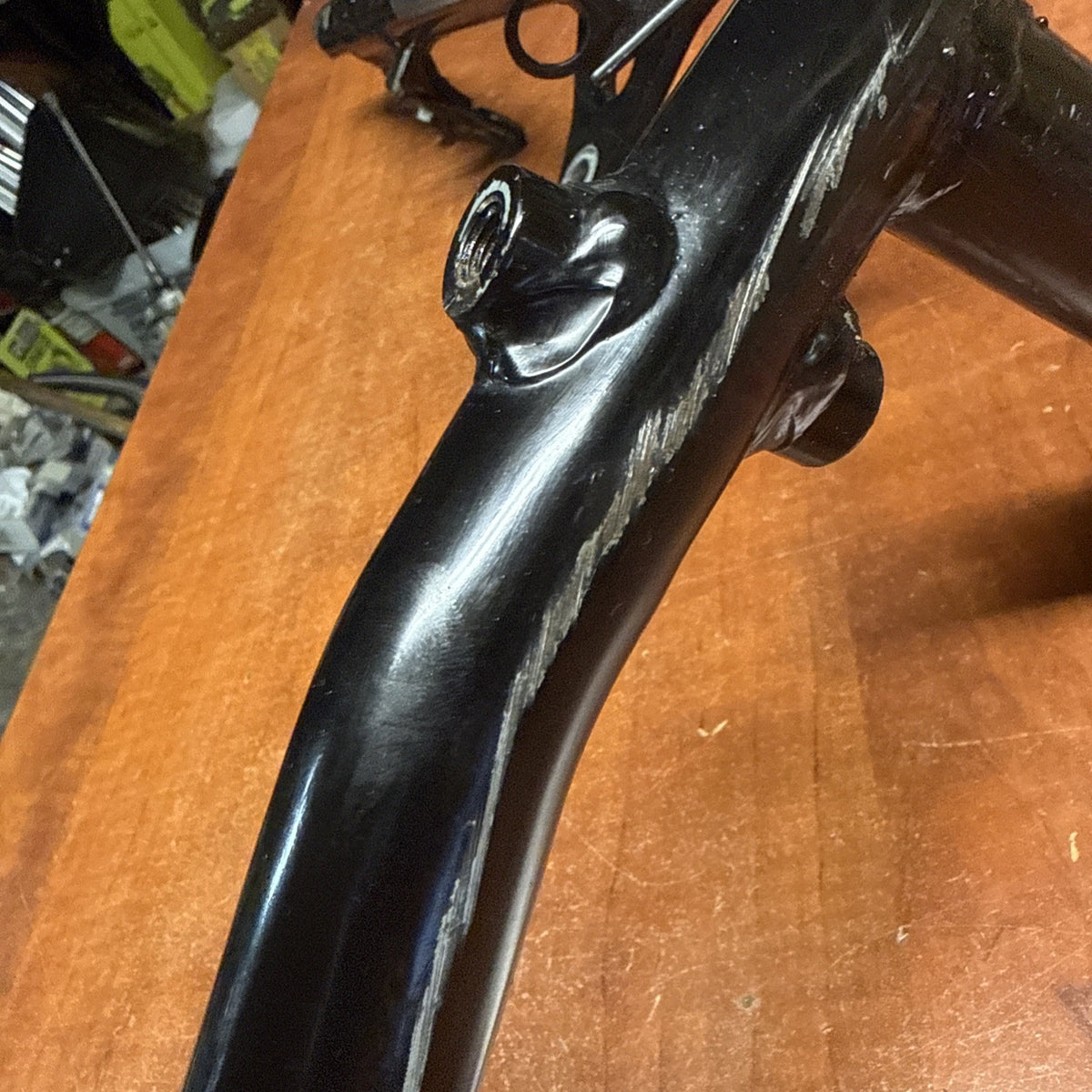

* **Cosmetic Finish:** The factory gloss black paint finish remains in great shape across the primary visual tubing but **displays expected minor cosmetic surface scuffs, small paint chips on the underside from road gravel debris, and faint tool marks** near the bolt holes from removal keys as pictured. This weathering is purely cosmetic and does not compromise mechanical durability or structural metal wall thickness.
