2002 Suzuki Volusia VL800 V-Twin Engine Frame Mount Hanger Through Bolts Spacer

2002 Suzuki Volusia VL800 V-Twin Engine Frame Mount Hanger Through Bolts Spacer

### IMPORTANT: BEFORE YOU BUY

* **Verify Part Number:** Please look closely at your motorcycle's official engine blocks and chassis microfiche blueprints under the **CRANKCASE** section. This hardware installation bundle features the genuine Suzuki factory structural heavy-duty suspension fasteners matching catalog names **BOLT (10X135)** under original part number **09103-10142** and matching layout points **BOLT (10X160)** under original factory part numbers **09103-10278**. All numbers are verified strictly through the official online Partzilla.com dealer catalog database.

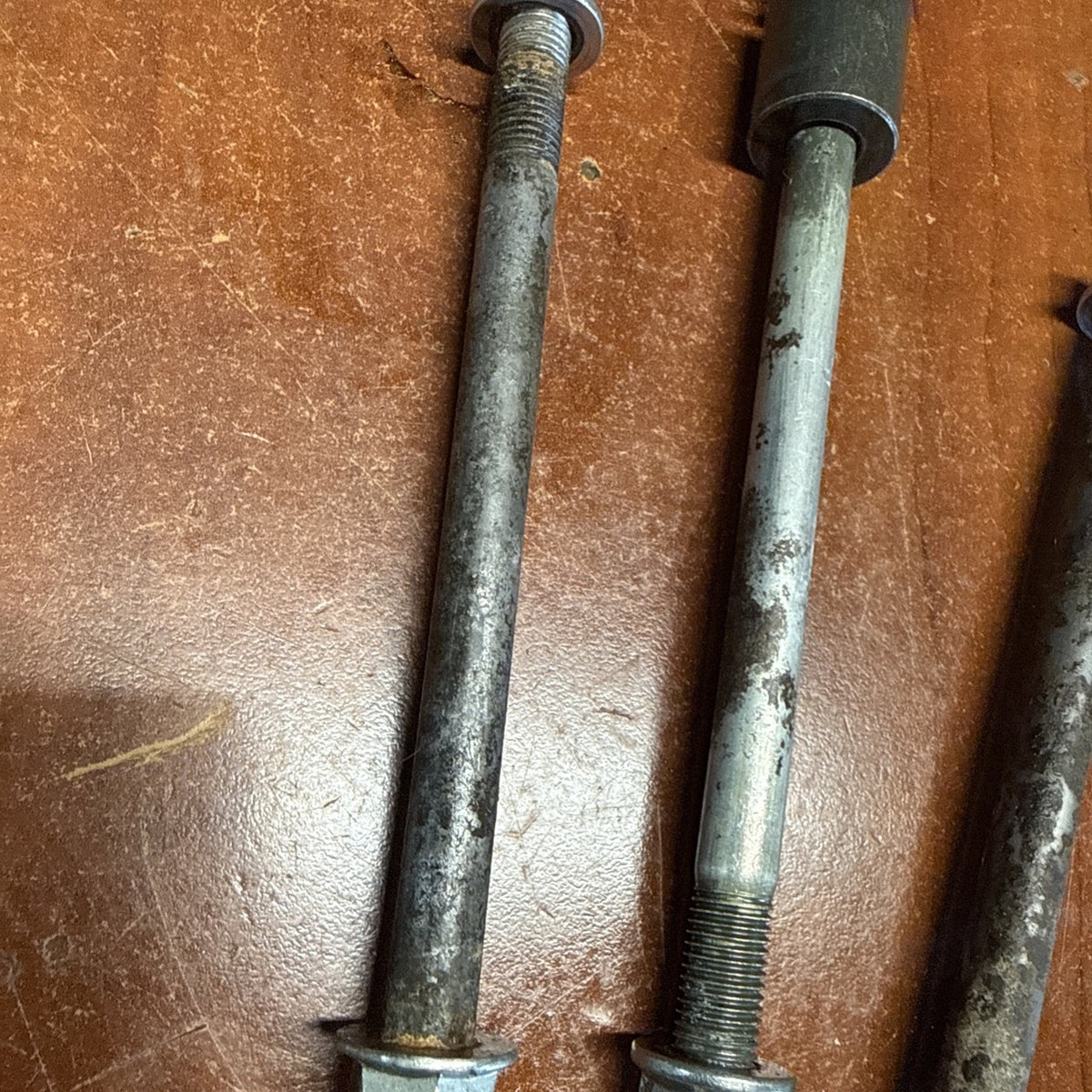

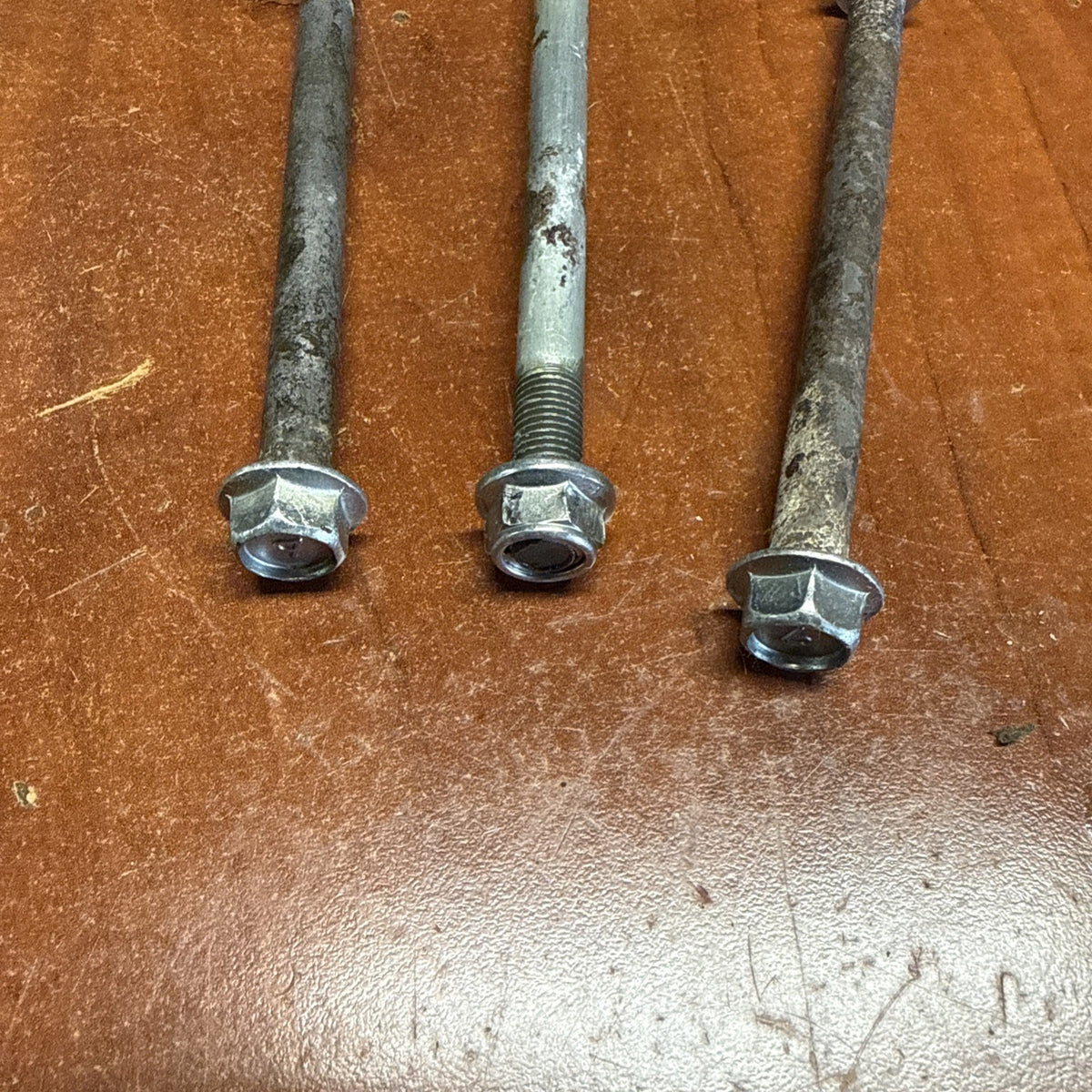

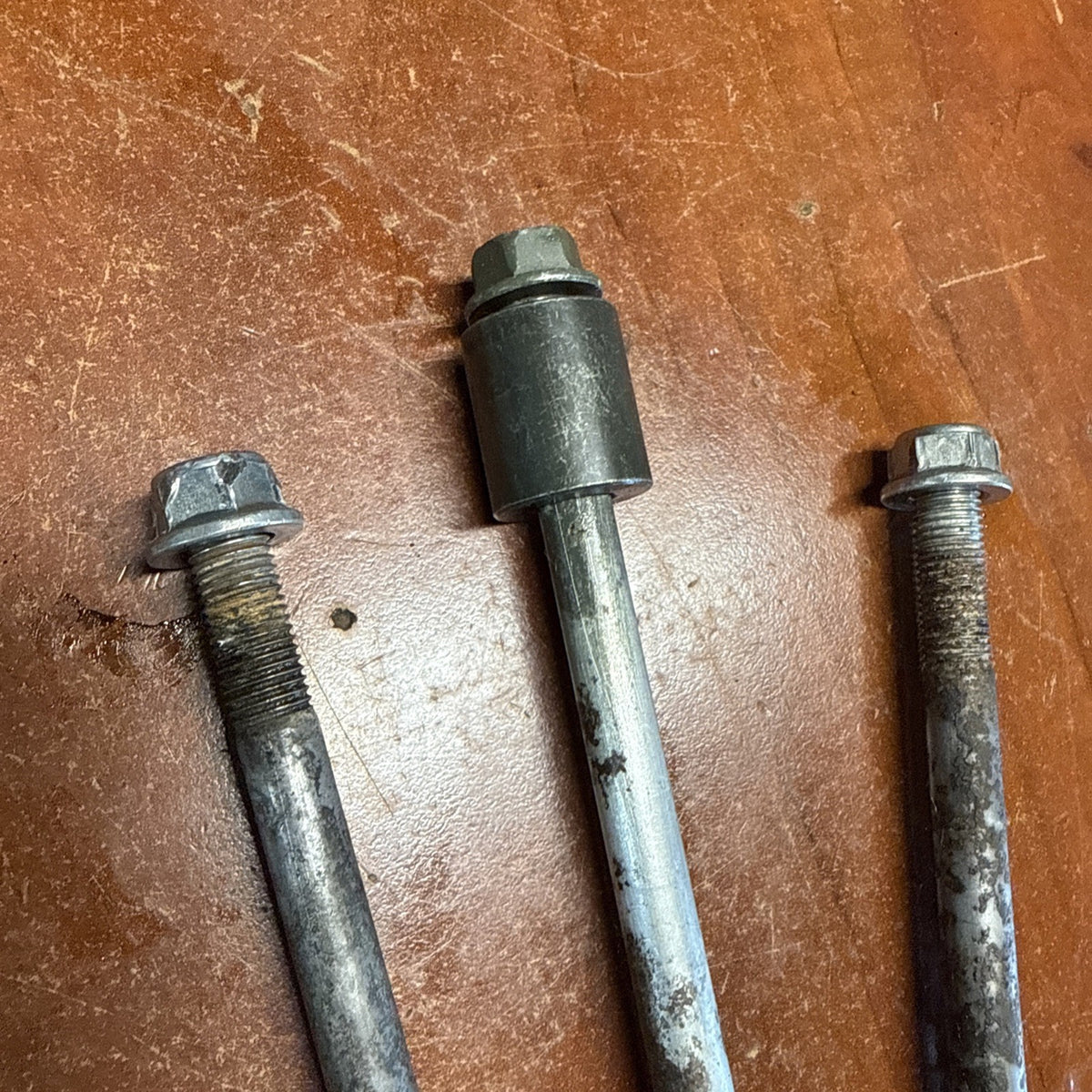

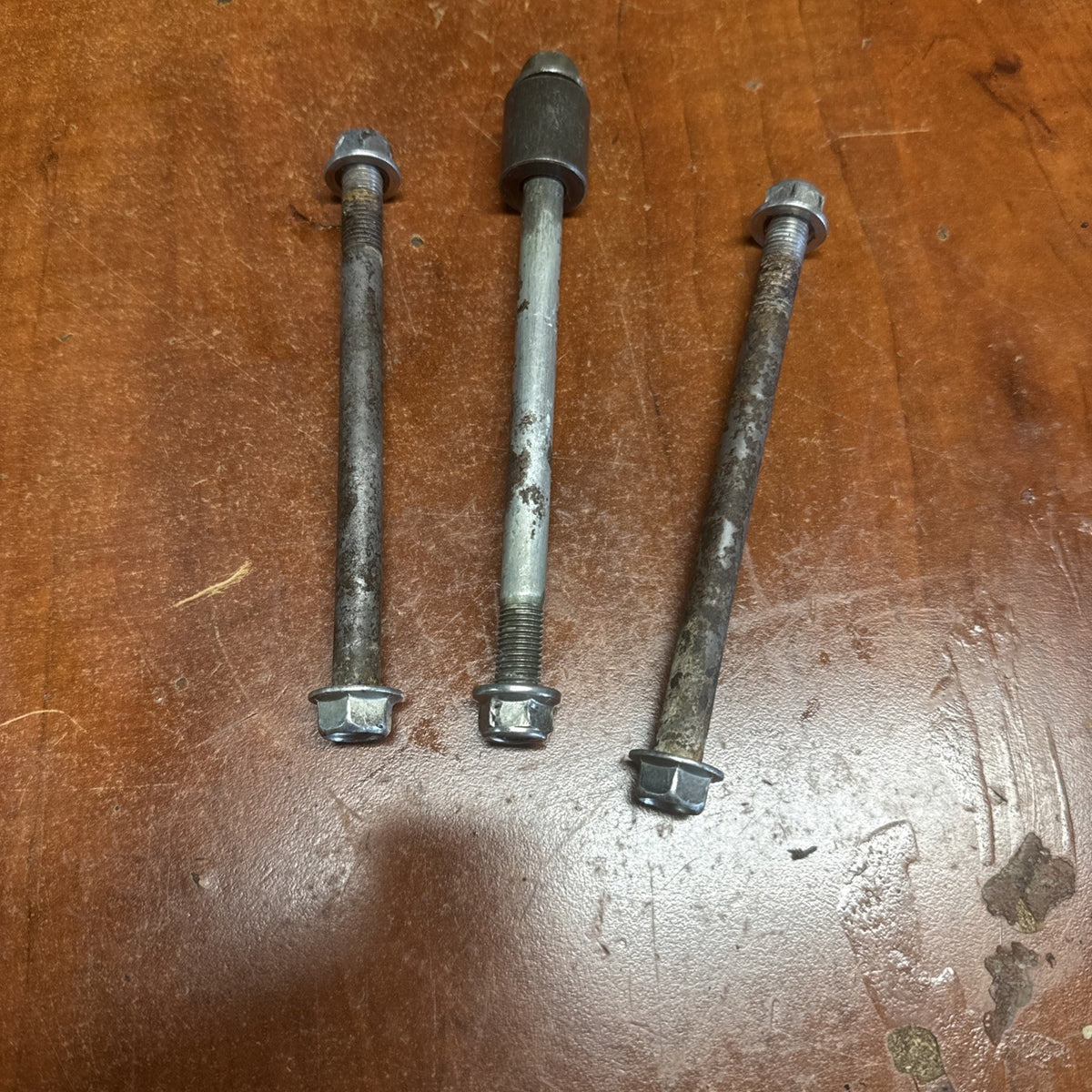

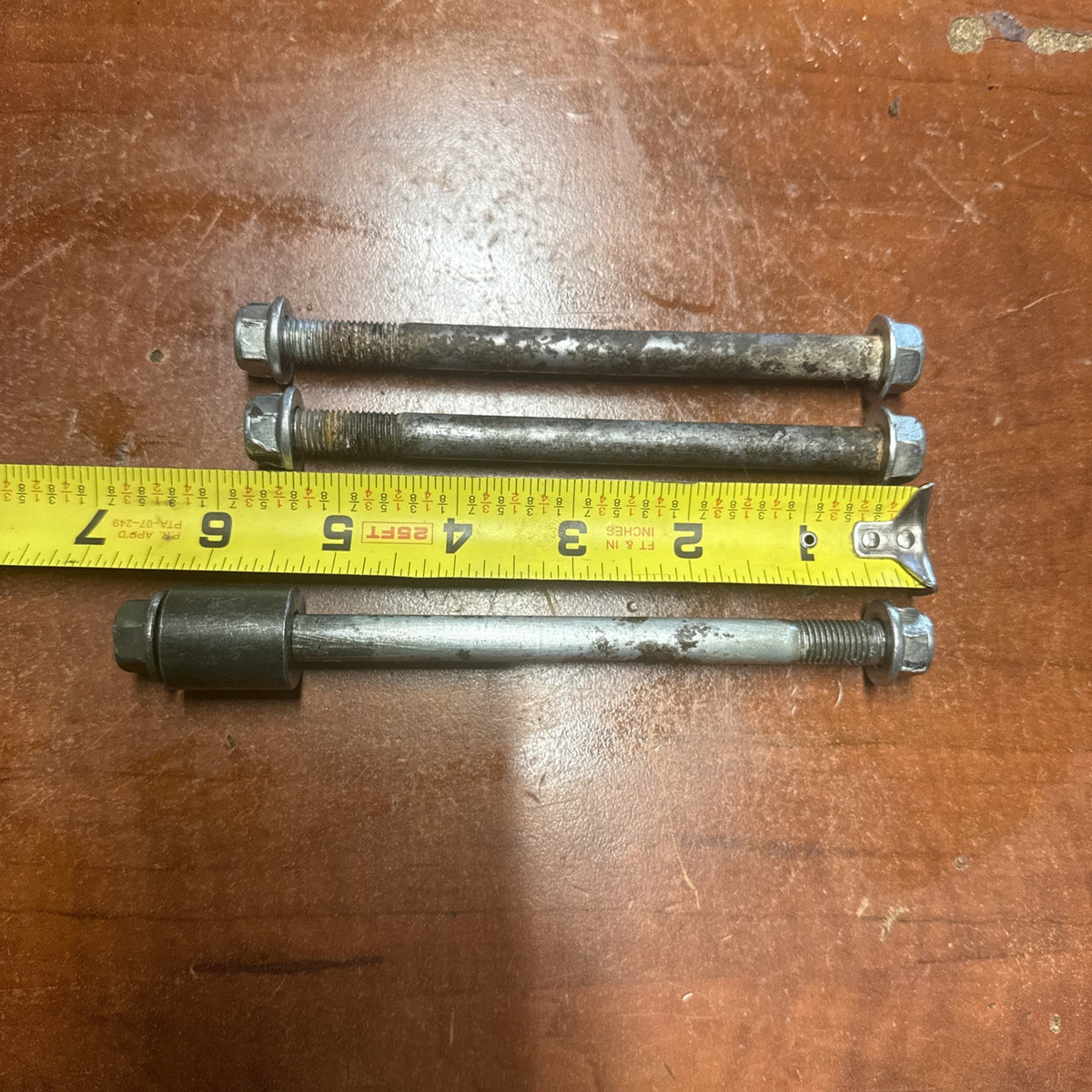

* **Hardware Included:** This listing features the complete 4-piece factory engine hanger chassis pass-through structural hardware set exactly as shown. It arrives fully loaded with three long solid steel flanged metric mounting through-bolts and one original thick steel cylindrical engine case spacer collar sleeve.

* **Compatibility:** Taken directly from a 2002 model year carburetor cruiser. Passes directly through the reinforced aluminum mounting loop eyes of the central engine crankcase block to rigidly lock the V-Twin powertrain setup into the steel chassis cradle frame.

### Description

This is a genuine **OEM Suzuki Engine Frame Mounting Hanger Through-Bolts & Spacer Kit**. Grade-hardened to strict factory tolerances to handle continuous engine mass weight loads, high structural road shocks, and heavy V-Twin vibration metrics without shearing, this authentic original hardware kit is essential for replacing bent, stripped, or rusted engine pins. Sourcing a complete, matched factory set with the specific thick frame spacing collar included saves you the frustration and high retail cost of attempting to track down individual long metric flange bolts from a dealer parts microfiche database.

* **Manufacturer:** Suzuki Motor Corporation (Made in Japan)

* **OEM Catalog Component Names:** BOLT, CRANKCASE HANGER / SPACER, ENGINE MOUNT

* **OEM Part Numbers:** 09103-10142 / 09103-10278

* **Included Components:** 3x Long Flanged Hex Head Hanger Bolts and 1x Heavy-Duty Steel Alignment Spacer Sleeve

* **Placement on Vehicle:** Central Main Chassis Matrix (Engine Block Suspension Mount Points)

* **Donor Vehicle:** 2002 Suzuki VL800 Intruder Volusia (Carburetor Model) with 12,855 original miles.

### Vehicle Fitment

* **2002 Suzuki Volusia 800** (VL800 / VL800Z classic carburetor cruiser)

### Condition

* **Overall Status:** Clean, sturdy excellent structural functional used condition, fully sound and removed from a low-mileage operational road motorcycle.

* **Straightness & Threads:** All three long solid steel bolt shafts are completely straight and entirely free of warp deflections, bows, or impact bends. The fine metric thread channels on the tips are exceptionally deep, sharp, and unstripped, allowing frame nuts to spin on smoothly. The hex flange heads feature crisp, non-rounded edges.

* **Cosmetic Oxidation:** The structural zinc-plated protective finish is intact across the items but **displays expected areas of cosmetic surface tarnish, faint environmental scaling rust spots, and typical road tarnish film** from exposure to road weather conditions as pictured. This weathering is purely cosmetic and does not compromise the high-tensile structural diameter thickness or locking capacity of the bolts.

### Shipping & Handling

* **Processing:** Shipped within 1 business day of cleared payment.

* **Packaging:** Packed safely inside a protective padded layout mailing envelope or a small rigid cardboard shipping box container to ensure the long steel bolt bodies, precision metric threads, and spacing sleeve do not receive impact shocks or friction thread damage during logistics transit.

* **Tracking:** Direct tracking metrics will automatically load into your transaction portal as soon as delivery coordinates are established.
