Suzuki Volusia VL800 Rear Cylinder Head Top Cover Valve Rocker Arms Protection

Suzuki Volusia VL800 Rear Cylinder Head Top Cover Valve Rocker Arms Protection

# IMPORTANT: BEFORE YOU BUY

This listing is strictly for the components pictured: the upper cylinder head top cover casting, two internal valve rocker arms, and the two pre-mounted aluminum inspection caps. No mounting bolts, seals, or gaskets are included in this sale. Please note that in the factory Suzuki catalog, the upper structural cover casting is not sold individually; it is originally machined and supplied only as a matched set with the lower cylinder head block under position **#1 (Part Number: 11103-41F01)**. Ensure mechanical alignment and compatibility before mating this top cover to your existing engine block.

All engine oil and coolant have been fully drained from all channels prior to disassembly. Review all high-resolution listing photos carefully to verify the exact hardware setup and mechanical condition before finalizing your purchase.

### Component Breakdown & OEM Part Numbers (Strictly Included):

* **Rear Cylinder Head Top Cover Casting** — Structural aluminum upper housing, upper component of position **#1** (Part Number: **11103-41F01**)

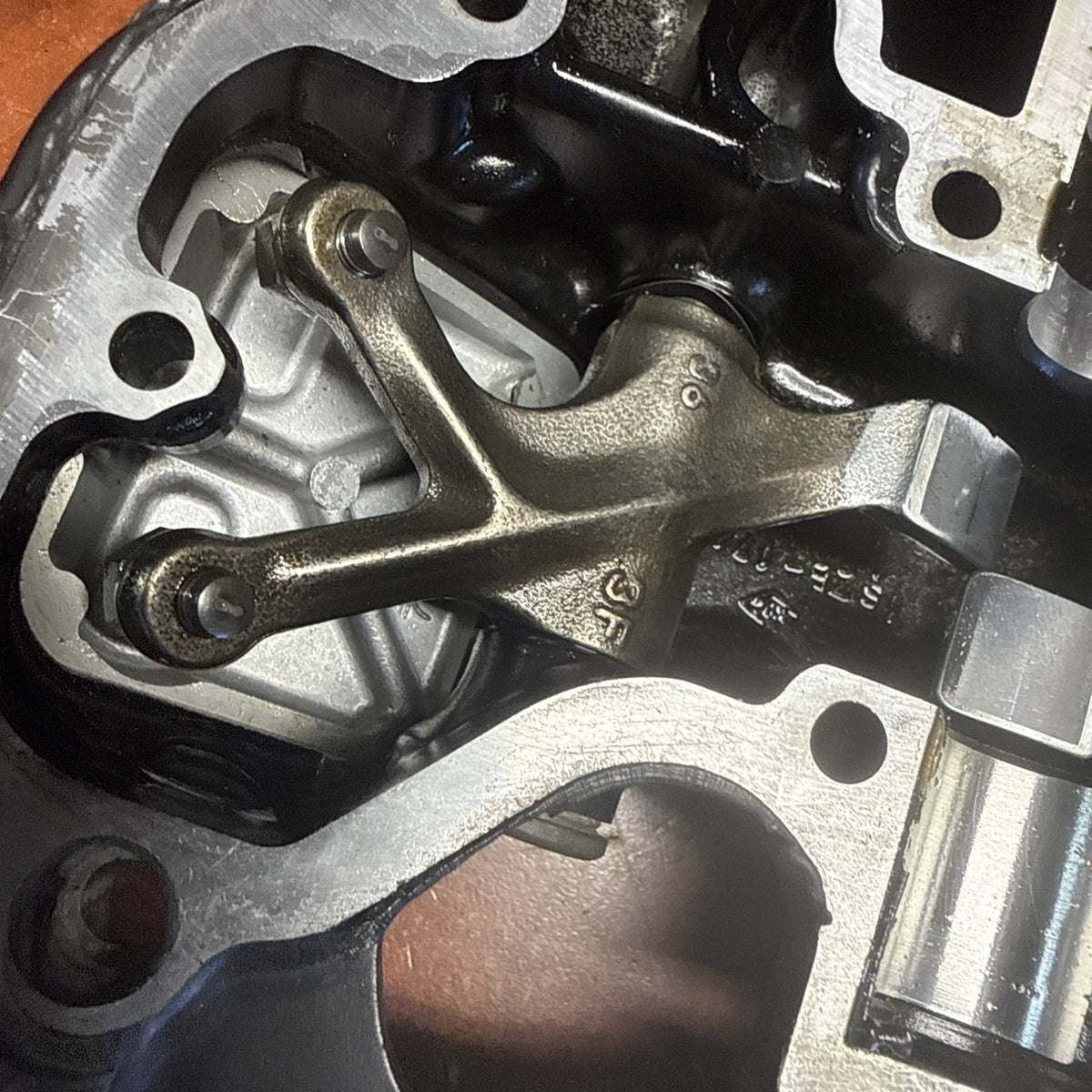

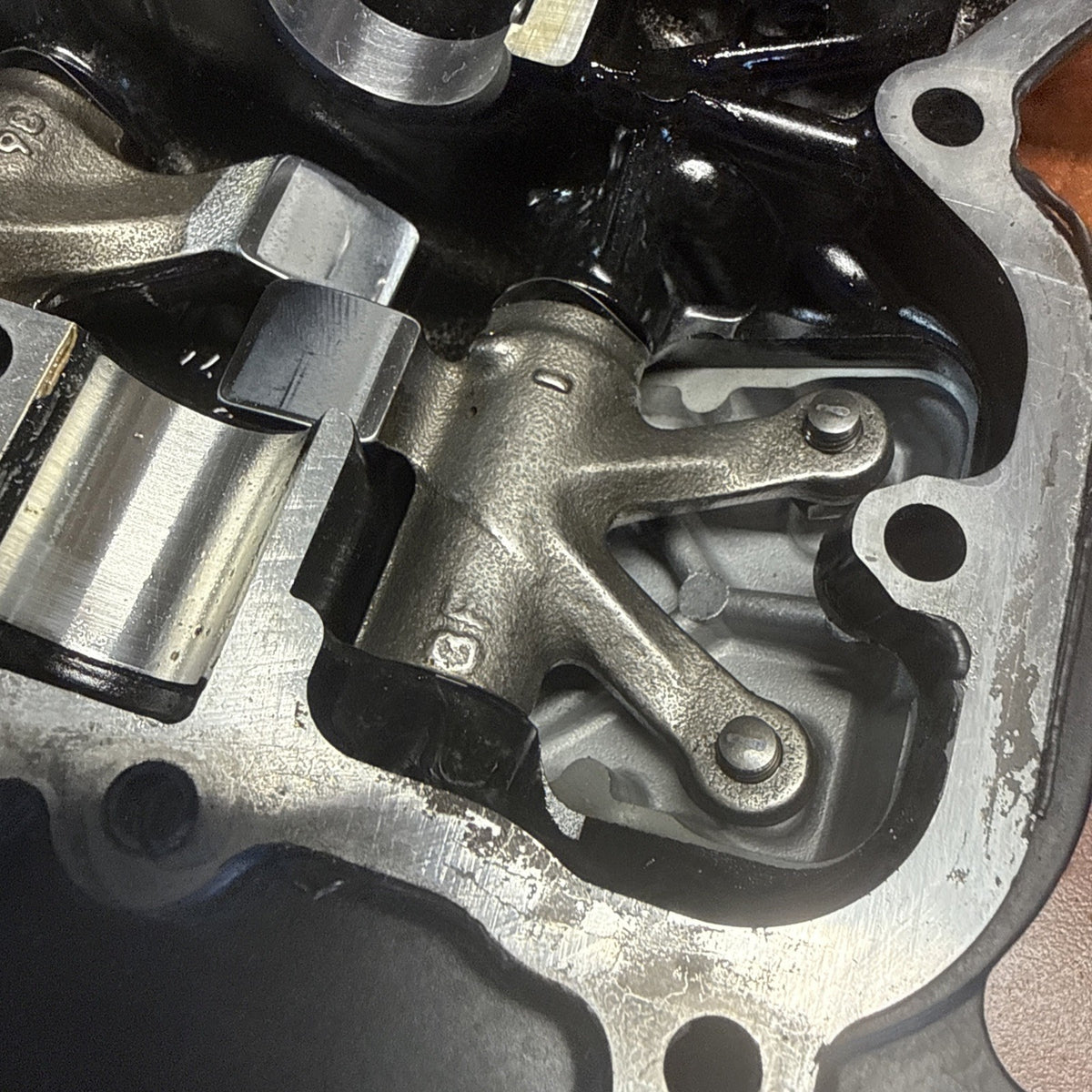

* **Intake Valve Rocker Arm** — Pre-installed inner valvetrain arm (Part Number: **12840-19F00**)

* **Exhaust Valve Rocker Arm** — Pre-installed inner valvetrain arm (Part Number: **12850-19F00**)

* **Intake Inspection Cap** — Pre-mounted square aluminum valvetrain access plug, position **#21** (Part Number: **11175-38A11**)

* **Exhaust Inspection Cap** — Pre-mounted square aluminum valvetrain access plug, position **#22** (Part Number: **11176-38A11**)

---

# Description

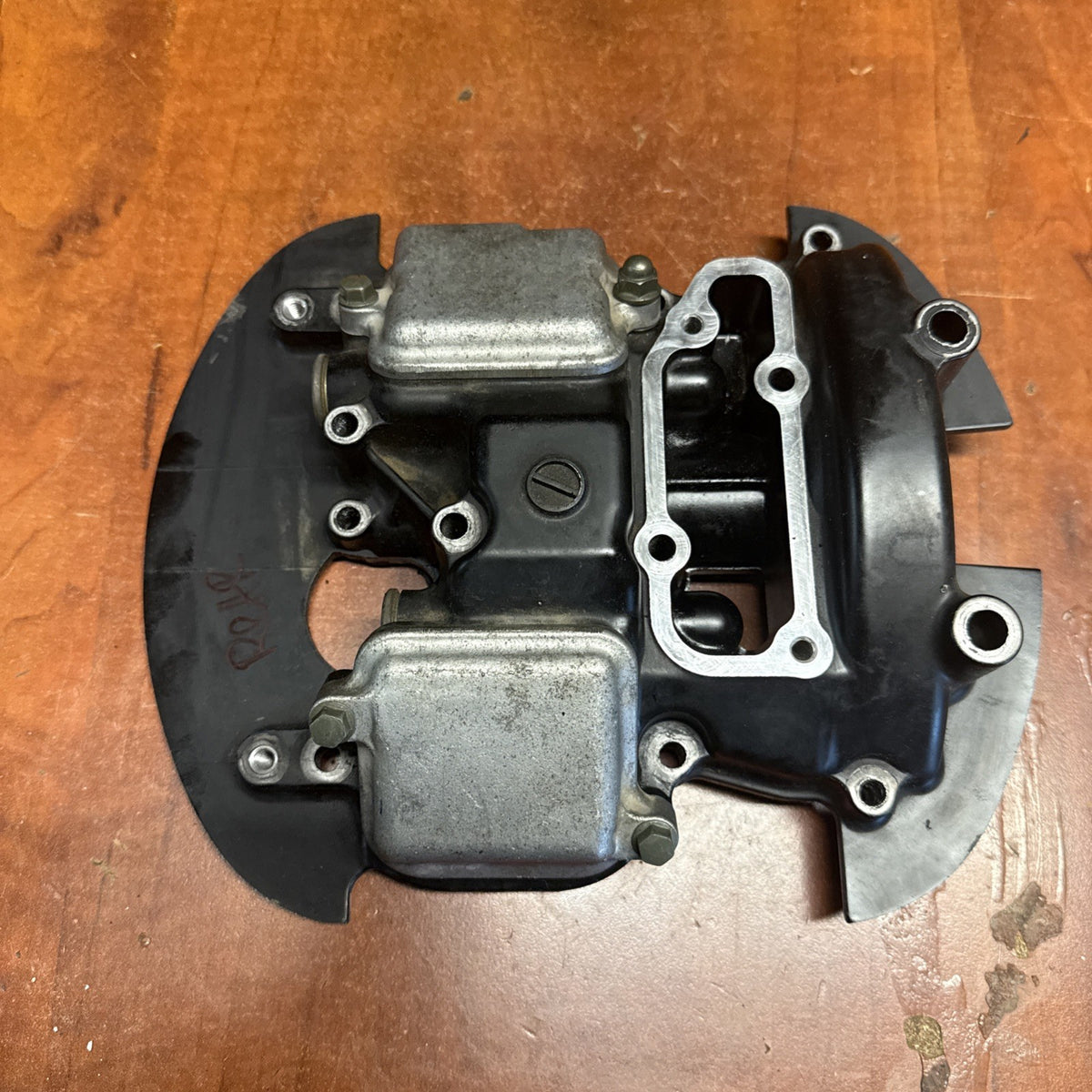

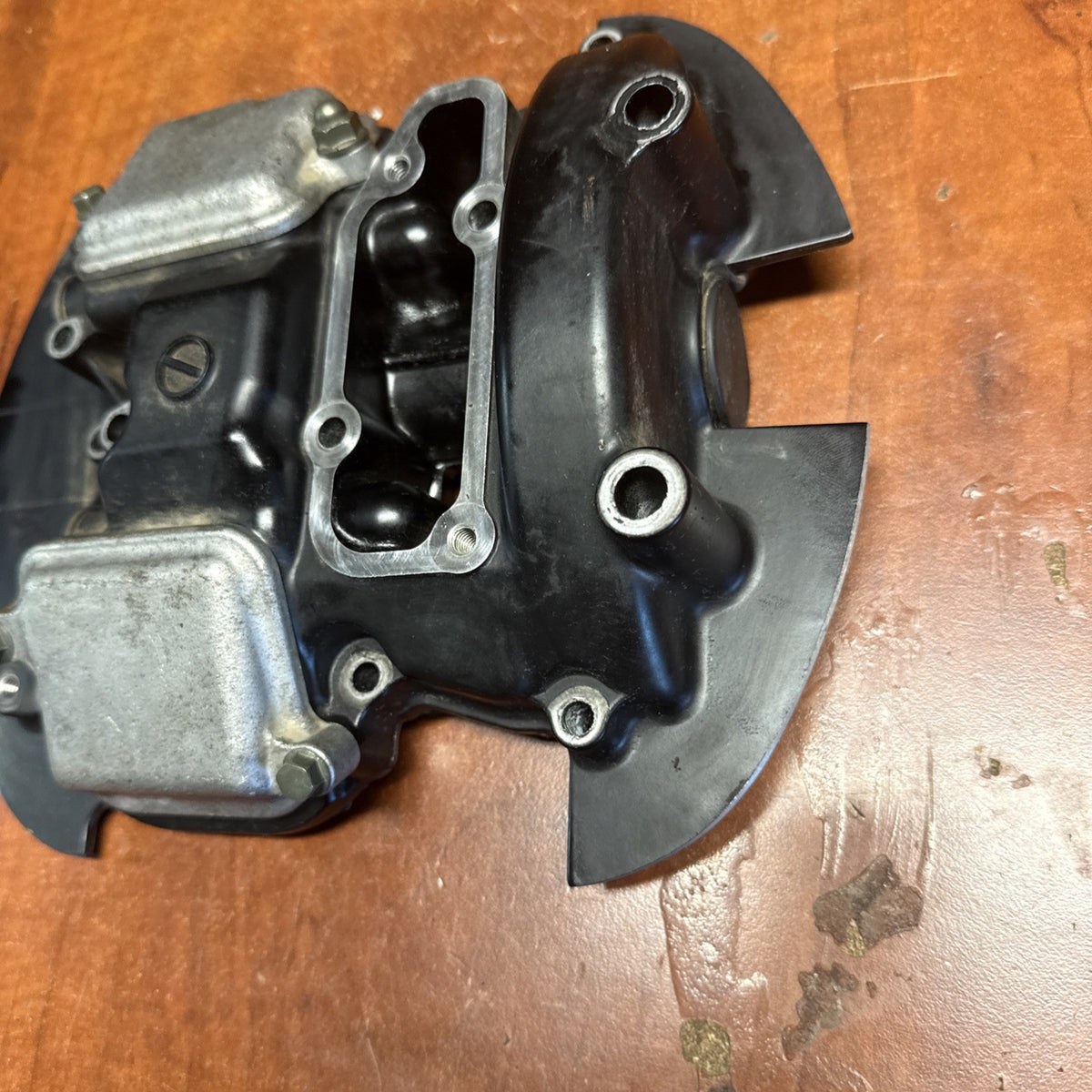

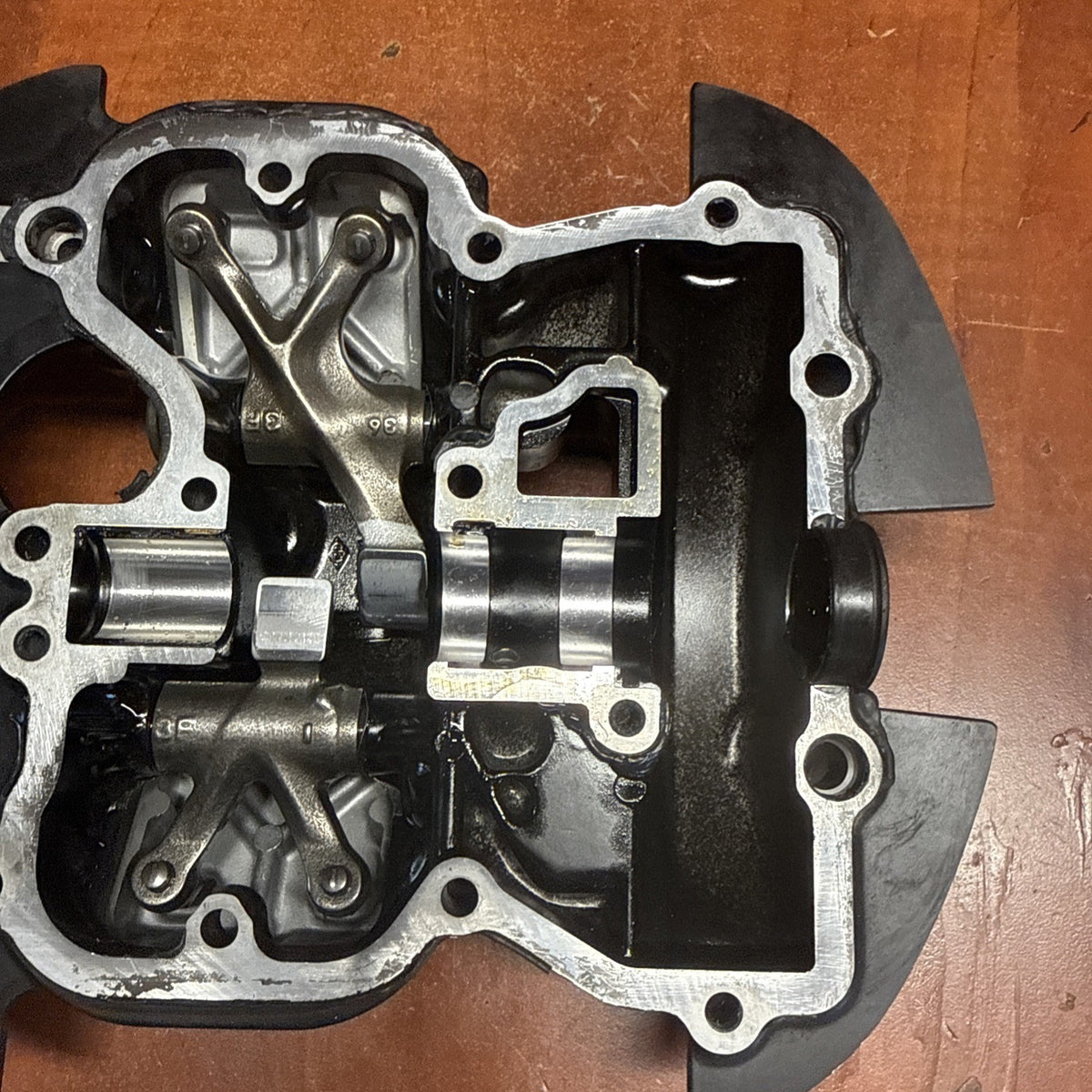

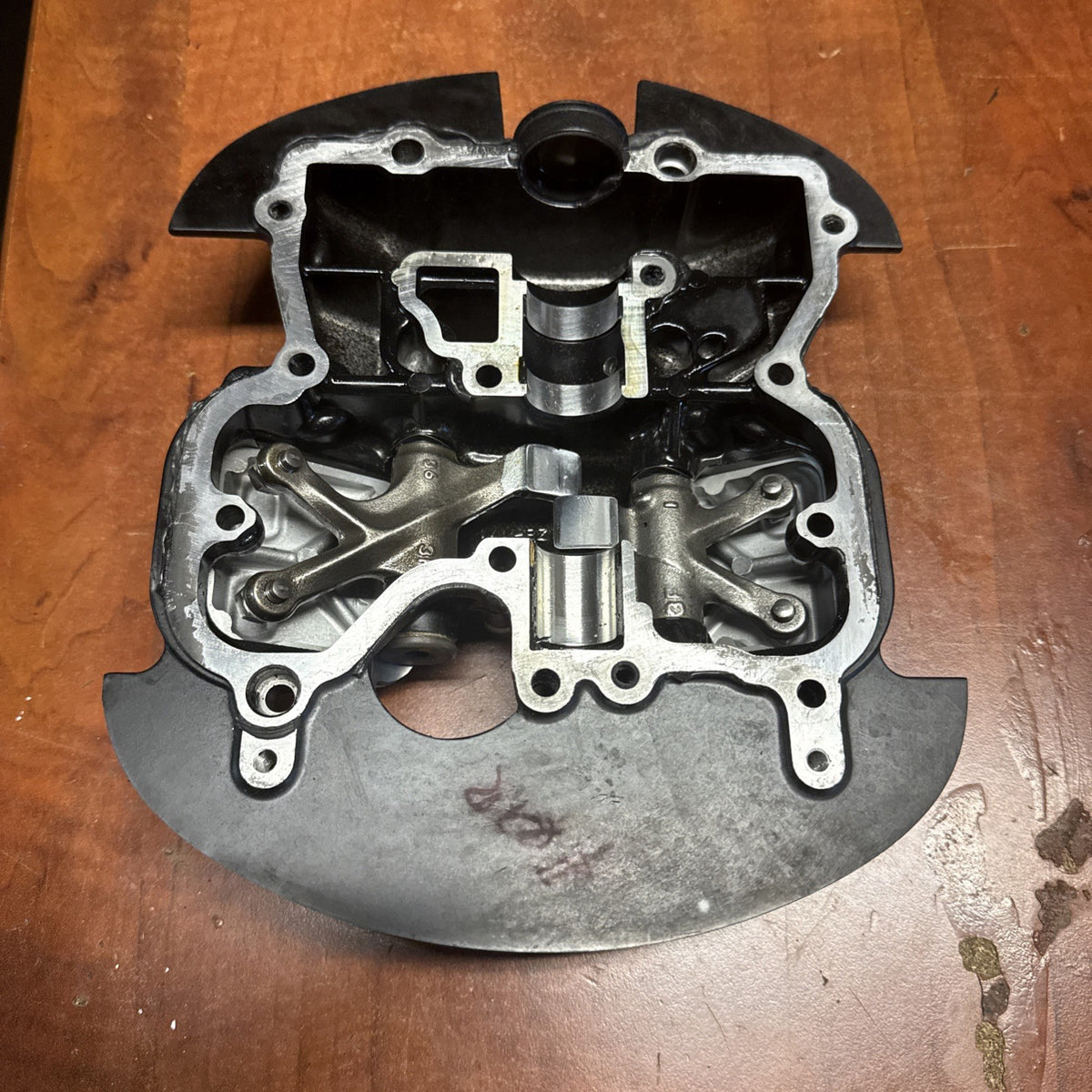

This is an authentic factory-original Suzuki rear cylinder head cover and valvetrain rocker arm assembly, compiled strictly according to the official dealer schematics. The assembly consists entirely of the structural top aluminum head cover, two internal rocker arms with adjusters, and the two pre-fastened exterior aluminum inspection shrouds/caps covering the valve adjusters.

All internal components have been structurally verified. The mechanical wear faces on the rocker pads show smooth operational finishes completely free of pitting, matching a well-maintained donor bike. This package is ideal for replacing a top-end cover with stripped internal journal surfaces or damaged inspection port threads.

---

# Vehicle Fitment

This part is guaranteed to fit only the following specific vehicle from our teardown:

* **2002 Suzuki Volusia VL800** (Classic Carbureted Cruiser)

---

# Condition

* **Mechanical Status:** Good working condition. The internal camshaft bearing surfaces and rocker contact faces are smooth, offering proper clearance with no scoring or heat-induced discoloration. Factory assembly threads for the main mounts are intact.

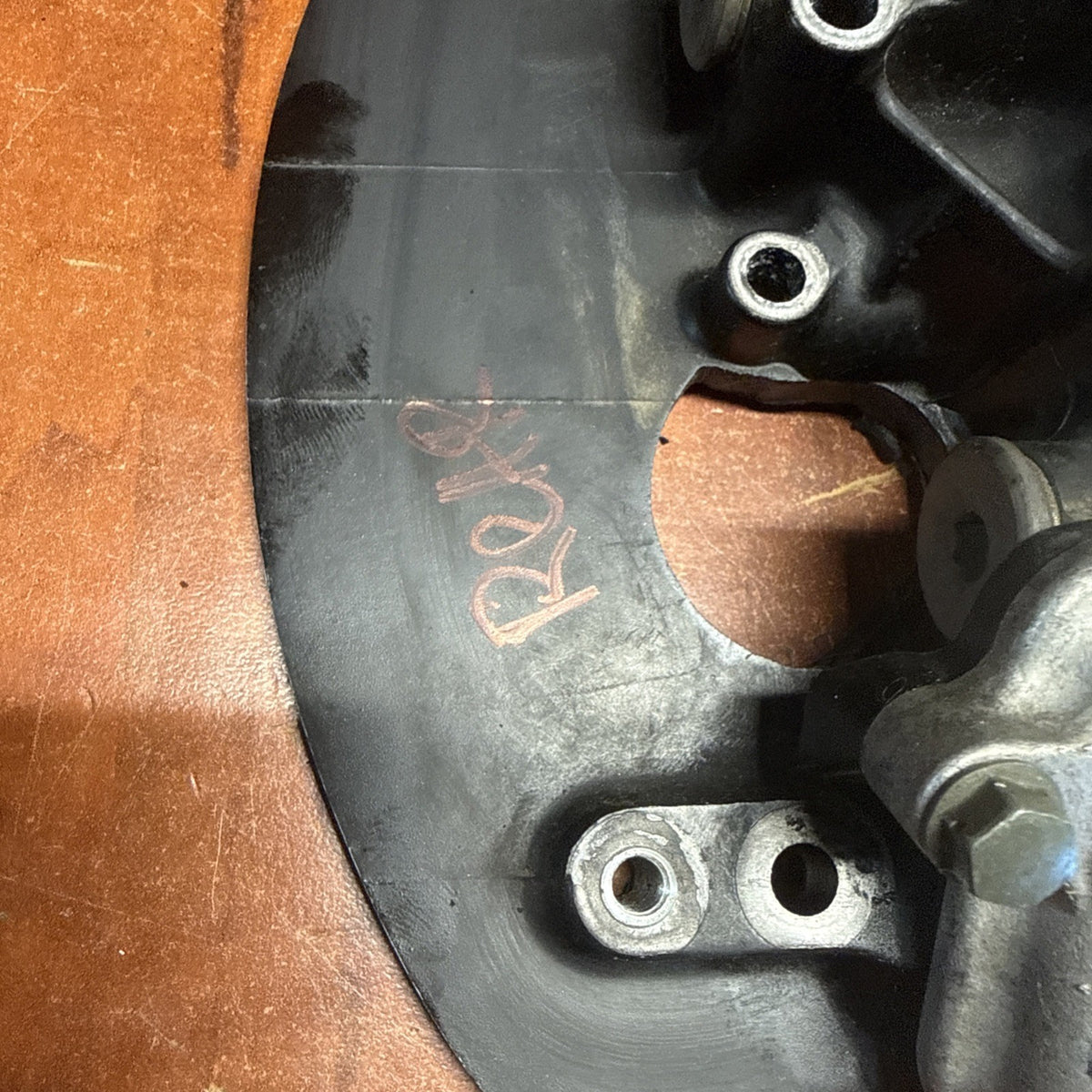

* **Cosmetic Status:** Exhibits typical signs of engine operation, including minor surface oxidation and light oil staining on the cast surfaces. The black plastic shroud features handwritten silver workshop grease-pen identification markings ("REAR") from initial cataloging, which can be wiped clean with standard parts cleaner. No hairline fractures or structural breaks exist on the mounting tabs.

---

# Shipping

We take pride in our parts preservation. This cylinder head cover assembly will be thoroughly wrapped in heavy-duty bubble wrap and cushioned inside a rigid cardboard box to completely prevent any damage to the precision machined rocker arm components or the pre-installed aluminum caps during transit.
